Product Details:
|
Brand Name: | UBNT | Model Number: | AirFiber 5/AF-5 |
---|---|---|---|
Dimensions: | 938.4 X 468.4 X 281.4 Mm (36.94 X 18.44 X 11.0 | Weight: | 16 Kg (35.27 Lb) Fixt |
Power Supply: | 50V, 1.2A PoE GigE Power Adapter (suppl | Port: | 10/100/1000 Ethernet Port |
Operating Temperature: | -40 To 55° C (-40 To 131° F) | Warranty: | 1 Year |
High Light: | 1G Outdoor Wireless Surveillance System,UBNT Outdoor Wireless Surveillance System,AirFiber 5/AF-5 |

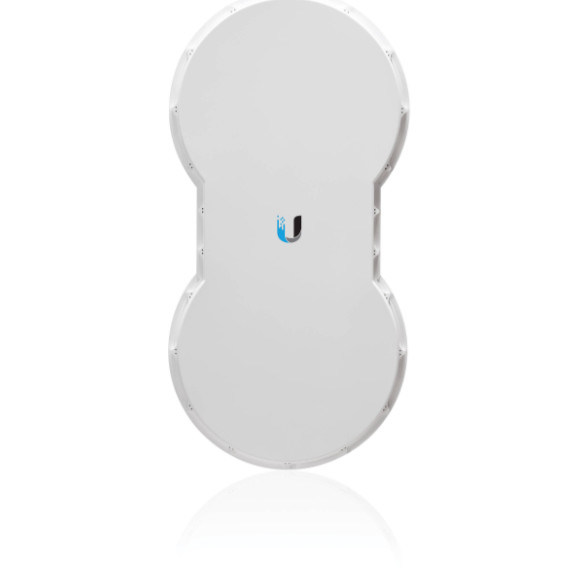

1G Outdoor Wireless Surveillance System UBNT Wireless Bridge AirFiber 5/AF-5
UBNT wireless bridge AirFiber 5/AF-5 wireless transmission system 1G throughput
Description of AirFiber 5/AF-5
The airFiber 5 (AF-5) has two airFiber models available for the 5 GHz spectrum. The mid-band model AF-5 uses the most popular mid-band frequency and is free to use in many parts of the world. The high-band (5.7 - 6.2 GHz) model AF-5U has strong filtering performance, enables collaborative positioning when the device is running on a lower 5 GHz band, and allows forRun at higher output power.
Specification of AirFiber 5/AF-5
airFiber AF-5/AF-5U | |
size | 938.4 x 468.4 x 281.4 mm (36.94 x 18.44 x 11.08") |
weight | 16 kg (35.27 lb) fixture |
Maximum power consumption | 40 W |
power supply | 50V, 1.2A PoE GigE power adapter (supplied). |
The power supply method | Passive Ethernet power supply |
Supported voltage range | 42-58VDC |
authentication | CE, FCC, IC |
Fixtures | Rod mounting kit |
Wind load | 863 N @ 200 km/hr (194 lbf @ 125 mph) |
Wind resistance | 200 km/hr (125 mph) |
Operating temperature | -40 to 55° C (-40 to 131°F) |
LED | (12) Status LEDs: |
Data port link/activity | |
Data port speed | |
Manage port links/activities | |
Manage port speed | |
GPS sync | |
Primary/slave | |
Link status | |
Modulation modes 0.25x to 4x,6x,8x,10x (unmarked), overloaded | |
Remote and local display (calibration signal strength). | |
The operating frequency | |
AF-5 FCC 15.247, 15.407, IC RSS-210 ETSI EN 301 893, EN 302 502 Other Regions |
5470 - 5600 MHz, 5650 - 5850 MHz 5470 - 5875 MHz 5470 - 5950 MHz |
AF-5U FCC 15.247, IC RSS-210 ETSI EN 302 502 Other regions |
5725 - 5850 MHz 5725 - 5875 MHz 5725 - 6200 MHz |
interface | |
The data port | (1) 10/100/1000 Ethernet port |
Manage the port | (1) 10/100 Ethernet port |
Secondary port | (1) RJ-12, calibrate tone port |
system | |
Maximum throughput | 1.2+ Gbps |
Maximum range | 100 x km (depending on the control area). |
Packets per second | More than 1 million |
encrypt | 128-bit AES |
Up/Down ratio | 50% fixed |
Broadcast frame synchronization | GPS |
Dynamic frequency selection AF-5 |
CE, FCC/IC CE, (FCC/IC) does not apply) |
Features of AirFiber 5/AF-5
1. Excellent processing ability
Ubiquiti Networks introduced the proprietary INVICTUS™ core communication processing engine. The speed, power and efficiency of this integrated circuit help to improve the performance of airFiber AF-5/AF-5U.
2. Effective use of the 5 GHz band
airFiber AF-5/AF-5U has a 1 MHz center channel resolution and market-leading power envelope tracking technology. airFiber AF-5/AF-5U can accurately and continuously control the transmission power related to the band edge. The power level is automatically tracked to optimize the performance around the edge of the frequency band, allowing you to select the part of the frequency band with the least interference.
3. Long-distance links
The patent-pending xRT function of the new airFiber AF-5/AF-5U uses an innovative, adaptive multi-channel coding scheme to enhance the performance of radio transceivers, thereby optimizing link budget and spectrum utilization when implementing standards and safety regulations. This allows the link to cover a distance of 10 m to over 100 km.
4. Fast and easy to use installation
The unique sliding fastener design of airFiber AF-5/AF-5U allows the installation hardware to be pre-assembled before installation, thereby avoiding the situation of the screw on the top of the tower from falling off. In addition, the simple bracket fixing device allows the installer to install the mounting hardware to the pole without supporting the weight of the airFiber wireless transmission system during the installation process.
5. Wireless calibration display
The wireless calibration display (RAD) is specially designed for airFiber AF-5/AF-5U to make alignment faster and easier. The dual-calibrated signal strength indicator can display the actual signal strength in real time in the local and remote airFiber wireless transmission systems. The comprehensive configuration of the wireless transmission system status indicator shows the following:
• GPS synchronization status
• Master/Slave mode
• RF link status
• Radio frequency overload warning
• Current modulation mode
• The rate of active links and wired management and data ports
