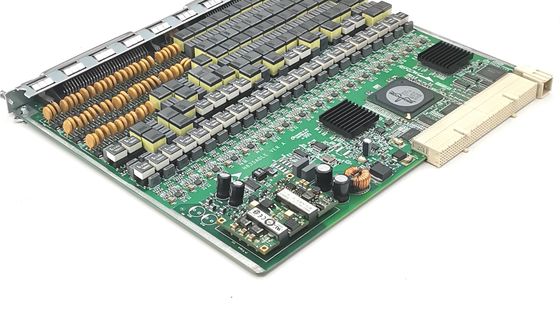

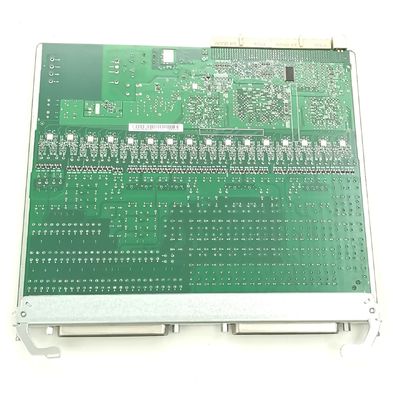

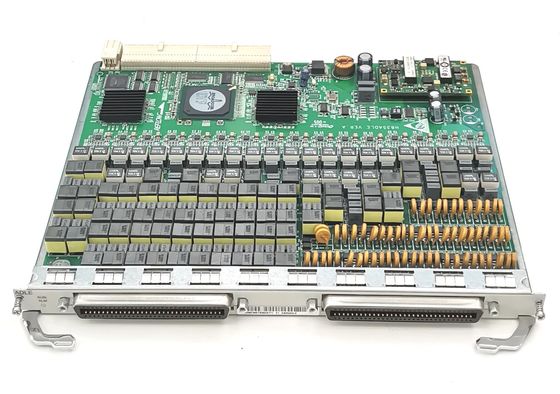

32 Channel HuaWei MA5616 Business Board H835ADLE ADSL2+OVER POTS

32 Channel HuaWei MA5616 Business Board H835ADLE ADSL2+OVER POTS
32 Channel HuaWei MA5616 Business Board H835ADLE ADSL2+OVER POTS 32 Channel HuaWei MA5616 Business Board H835ADLE ADSL2+OVER POTS 32 Channel HuaWei MA5616 Business Board H835ADLE ADSL2+OVER POTS 32 Channel HuaWei MA5616 Business Board H835ADLE ADSL2+OVER POTS

Large Image :  32 Channel HuaWei MA5616 Business Board H835ADLE ADSL2+OVER POTS

Product Details:
Place of Origin: China, Guangdong
Brand Name: HuaWei
Model Number: H835ADLE
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: new in the box .
Delivery Time: 5-8days
Payment Terms: T/T, Western Union

32 Channel HuaWei MA5616 Business Board H835ADLE ADSL2+OVER POTS

Description
Model Number: H835ADLE Brand: HuaWei
Power Supply: AC: 220 V/110 V, DC: -48 V Dimensions (H X W X D): 265 Mm X 220 Mm X 20.32 Mm
Maximum Power Consumption: 30~33W Brand Name: MA5616 Network
INM: Supported Warranty: 1 Year
High Light:

HuaWei MA5616

,

H835ADLE

,

32 Channel Business Board

32 Channel HuaWei MA5616 Business Board H835ADLE ADSL2+OVER POTS



HuaWei MA5616 business board H835ADLE 32-channel ADSL2+OVER POTS voice broadband board ADLE



HW MA5616 32 channels ADSL2+ over POTS service board



Specification
PSTN port transmits 32 channels of POTS signals separated by the built-in splitter of the H83A/H835/H836ADLE board
LINE port Supports 32 channels of POTS and ADSL2+ integrated signals. Table 3 describes the pin assignments of the port.
Power Consumption Static Power Consumption: 6~11W
Typical Power Consumption: 19~21W
Maximum Power Consumption: 30~33W
Operating temperature -40℃ to 65℃; startup at -25℃
Humidity 5% to 95% (non-condensing)
Power supply AC: 220 V/110 V, DC: -48 V
Clock features Network time synchronization
Line clocks recovered on upstream ports
Mechanical Specification
Dimensions (H×W×D) H835/H836ADLE: 265 mm x 220 mm x 20.32 mm
H83AADLE: 265 mm x 220 mm x 20.32 mm

Based on the number of supported users, ADSL2+ service boards supported by the MA5616 can be classified into 32-channel ADSL2+service board and 64-channel ADSL2+ service board. These boards support ADSL2+ and ADSL2+ over POTS access services. Table 1 lists the differences between ADSL2+ service boards supported by the MA5616.


Specifications
H83AADLE or H835ADLE
H836ADLE
H836ADPE
Applicable line
32-channel ADSL2+ over POTS
32-channel ADSL2+ over POTS
64-channel ADSL2+ over POTS
Port
PSTN
LINE
G.INP
Supported
Not supported
Not supported
INM
Supported
SELT
supported
MELT
Not supported
Annex type
G.992.1 Annex A
G.992.3 Annex A, L, or M (EU32-EU64)
G.992.5 Annex A or M (EU32-EU64)
Configuration mode
Supports RFC 2662, RFC 4706, and TR165. (Users can switch a configuration mode. To do so, log in to the MA5616 as a super user and
run the switch adsl mode to command in diagnose mode. The default configuration mode is RFC 2662. Considering the development
trend, TR165 is recommended because it is more flexible than others.)
Connector
Champ 64-pin
Champ 64-pin
Delander 64-pin
Embedded splitter
Supported (600-ohm impedance splitter)
Temperature query and high-temperature alarm
Supported
Automatic power shutdown in the event of a high temperature
Supported









32 Channel HuaWei MA5616 Business Board H835ADLE ADSL2+OVER POTS 032 Channel HuaWei MA5616 Business Board H835ADLE ADSL2+OVER POTS 1
