Product Details:
|
| Product Name: | RBLHGR&R11e-LTE/LHG LTE Kit | CPU Nominal Frequency: | 650 MHz |
|---|---|---|---|
| Max Power Consumption: | 6 W | Dimensions: | 391 X 391 X 227 Mm |
| PoE In Input Voltage: | 10-30 V | 10/100 Ethernet Ports: | 1 |
| Storage Size: | 16 MB | ||
| High Light: | MikroTik 4G Wireless Bridge,MikroTik RBLHGR,MikroTik LHG LTE Kit |
||

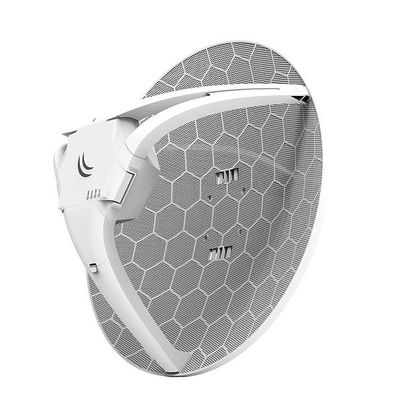

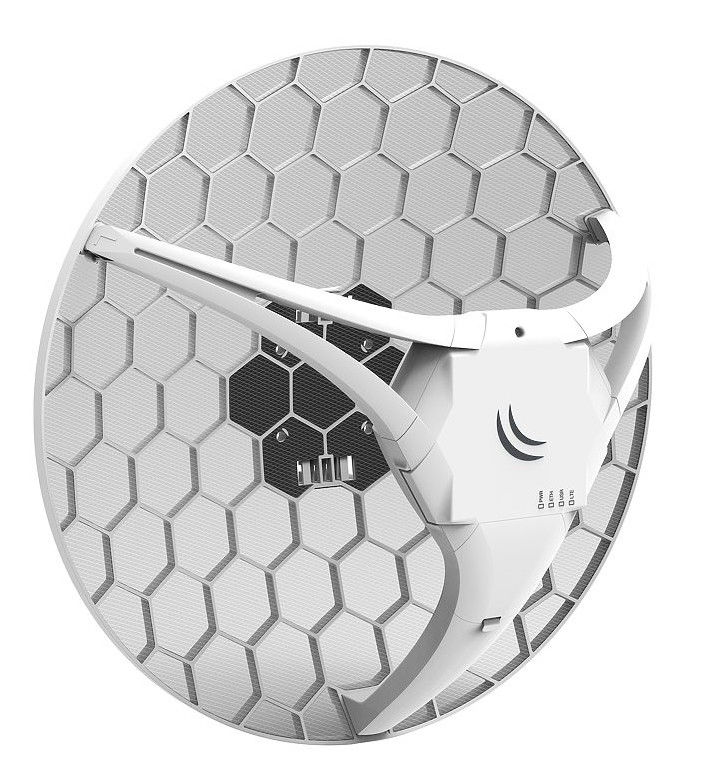

MikroTik RBLHGR&R11e-LTE/LHG LTE kit triple play 4G long-distance gigabit wireless bridge
Descriptions of RBLHGR&R11e-LTE/LHG LTE kit
The LHG LTE kit is a device for remote locations that are within cellular network coverage. Mount it outdoors, on a pole, mast or any high enough structure, and connect even where cell phones can’t. Due to it’s large sized high gain antenna, the device is capable to connect to cell towers in extreme rural locations, giving you the ability to provide last mile internet access where nothing else is available.
The unit is equipped with one Ethernet port, has a built in high quality Category 4 modem for speeds of up to 150 Mbit/s downlink and 50 Mbit/s uplink.
RBLHGR&R11e-LTE includes LTE modem that supports International LTE bands 1, 2, 3, 7, 8, 20, 38 and 40.
Features of RBLHGR&R11e-LTE/LHG LTE kit
1. High signal gain
The LHG LTE device is intended for remote locations within the range of a cellular network. They can be mounted outside on a mast or other sufficiently high structure, which guarantees a connection wherever mobile phones do not work. Due to the large high gain antenna, the device is able to connect to cell phone towers located in extreme areas and provide Internet access.
2. Fast connection
The device is equipped with one Ethernet port and a high-quality built-in category 4 modem, with throughput up to 150 Mbit / download and 50 Mbit / s upload.
Specifications of RBLHGR&R11e-LTE/LHG LTE kit
| Details | |
|---|---|
| Product code | RBLHGR&R11e-LTE |
| Architecture | MIPSBE |
| CPU | QCA9531 |
| CPU core count | 1 |
| CPU nominal frequency | 650 MHz |
| Dimensions | 391 x 391 x 227 mm |
| License level | 3 |
| Operating System | RouterOS |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| Tested ambient temperature | -40°C to 60°C |
| Details | |
|---|---|
| PoE in | 802.3af/at |
| PoE in input Voltage | 12-57 V |
| Number of DC inputs | 1 (PoE-IN) |
| Max power consumption | 6 W |
| FAN count | Passive |
| Details | |
|---|---|
| 2G Category | Class12 |
| 2G bands | 2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz) |
| 3G Category | R7 (21Mbps Downlinks, 5.76Mbps Uplink) |
| 3G bands | 1 (2100MHz) / 2 (1900MHz) / 5 (850MHz) / 8 (900MHz) |
| LTE Category | 4 (150Mbps Downlink, 50Mbps Uplink) |
| LTE FDD bands | 1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) |
| LTE TDD bands | 38 (2600MHz) / 40 (2300MHz) |
| Details | |
|---|---|
| 10/100 Ethernet ports | 1 |
| MiniPCI-e slots | 1 |
| Details | |
|---|---|
| Mode button | Yes |
| Details | |
|---|---|
| Certification | CE/RED, EAC, ROHS |
| Details | |
|---|---|
| Number of SIM slots | 1 Modem (Micro SIM) |
| MiniPCI-e slots | 1 |
| RBLHGR&R11e-LTE | QCA9531 100M one port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 8.1 | 98.4 | 23.5 | 96.3 | 173.6 | 88.9 |
| Bridging | 25 bridge filter rules | 8.1 | 98.4 | 23.5 | 96.3 | 70.9 | 36.3 |
| Routing | none (fast path) | 8.1 | 98.4 | 23.5 | 96.3 | 160.8 | 82.3 |
| Routing | 25 simple queues | 8.1 | 98.4 | 23.5 | 96.3 | 90.8 | 46.5 |
| Routing | 25 ip filter rules | 8.1 | 98.4 | 23.5 | 96.3 | 43.2 | 22.1 |
