Product Details:
|
| Product Name: | Flatpack2 24/1800 HE | Output Type: | Multiple |
|---|---|---|---|
| Input Vol Range: | 85 - 300 VAC | Voltage (Default): | 26.7 VDC |
| Current (Maximum): | 75A | Voltage (Adjustable Range): | 21.7 - 28.8 VDC |
| Dimensions: | 109 X 41.5 X 327mm | Weight: | 1.950 Kg (4.3lbs) |
| High Light: | Eltek Power Rectifier Modules,Multiple Rectifier Modules,Flatpack2 24/1800 HE |
||

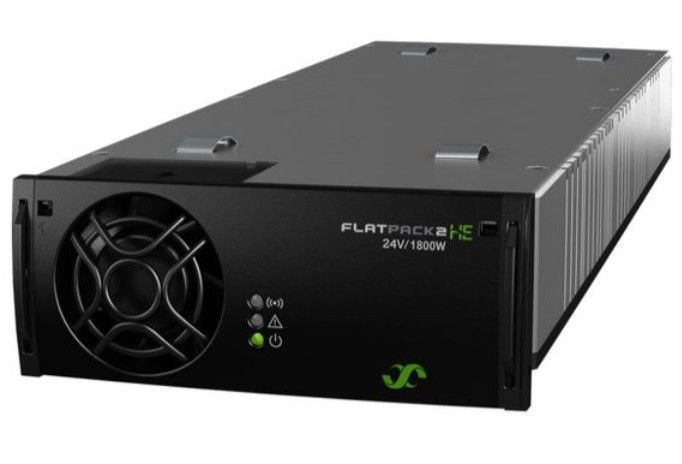

Eltek Power Modules Flatpack2 24/1800 HE Rectifier Module 241115.205
Applications
1. Wireless, fiber and fixed line communication
Today’s communications demand state of the art, cost effective and compact DC power systems. Flatpack2 HE delivers an industry leading power density and superb reliability at lowest lifetime cost.
The HE rectifier also has an extremely high efficiency at low load, which historically has been a drawback with most modern soft switching technologies.
2. Broadband and network access
Increasing network speed demands flexible and expandable DC power solutions. The Flatpack2 HE rectifiers are your key building blocks for future needs.
3. Small and large
Due to the high power density, cost competitive design and a highly flexible system communication interface, Flatpack2 HE rectifiers are used in system solutions from 1.8kW to 192KW
Product Features and Advantages
1. Flexibility and reliability
Extensive use of digital controllers has enabled advanced functionality to meet most customers’ requirements. It also provides intelligent self-protective features like reduced output power at high temperatures or low mains.
2. Plug and play
Plug a new rectifier into the system, and it automatically logs on, gets an assigned ID, downloads the system set parameters from the control system and starts up with a minimum of installation time, and without interrupting the system or attached equipment.
The HE rectifier is made fully compliant with the standard Flatpack2 rectifier which means it can be used in any FP2 system solutions, whether it is in new installations, site expansions or replacement programs.
3. Global compliance
Eltek Valere is among the market leaders in all regions in the world, and designs the core products to be compliant to all relevant standards and customer requirements. All Flatpack2 rectifiers are CE marked, UL recognized and NEBS compliant.
4. Patents pending
Flatpack2 HE is a result of intensive research over many years. Several unique technical solutions are introduced, protected by patent applications.
Specifications
