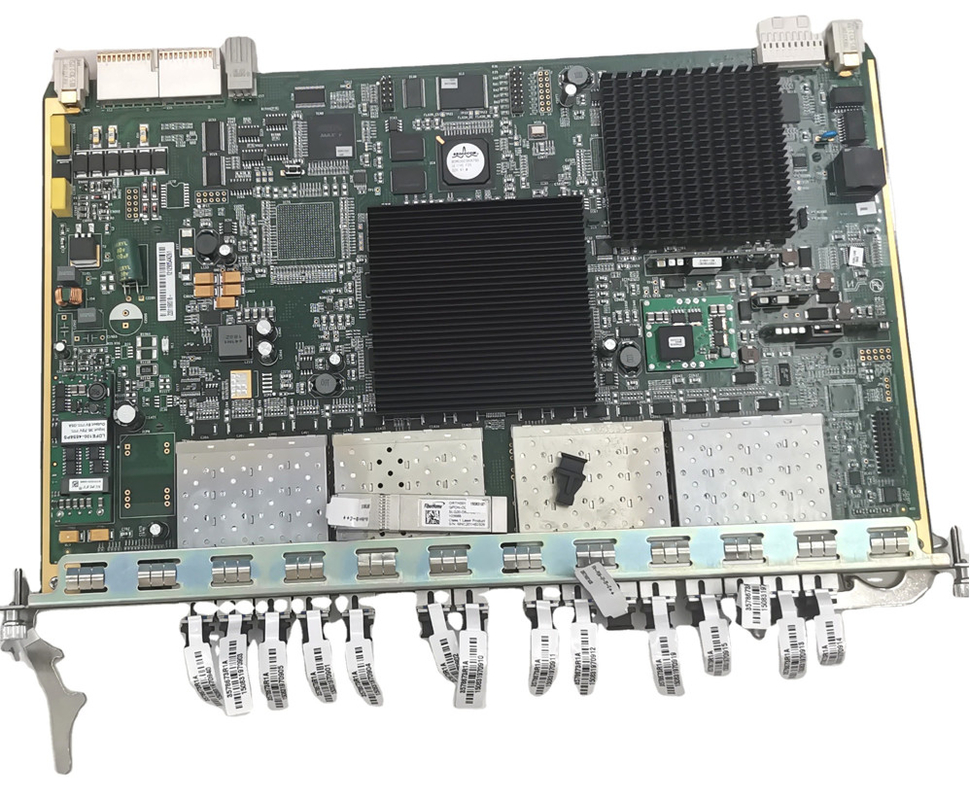

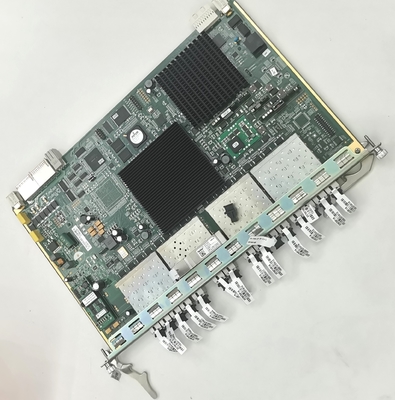

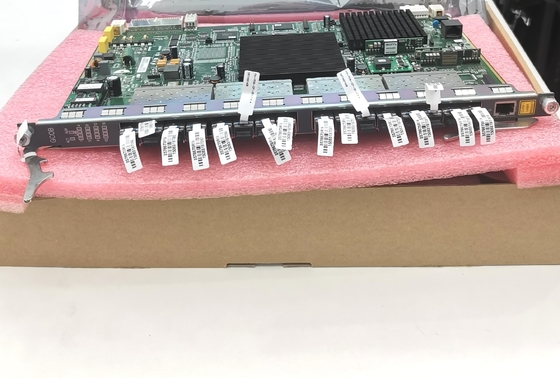

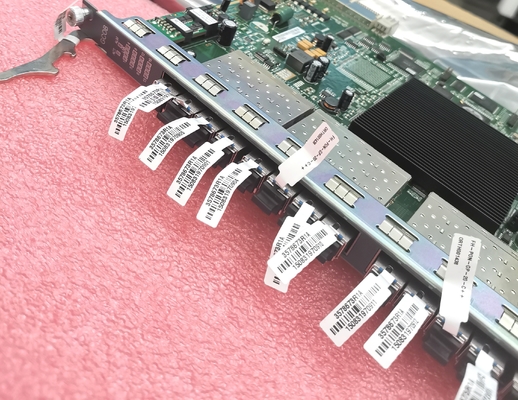

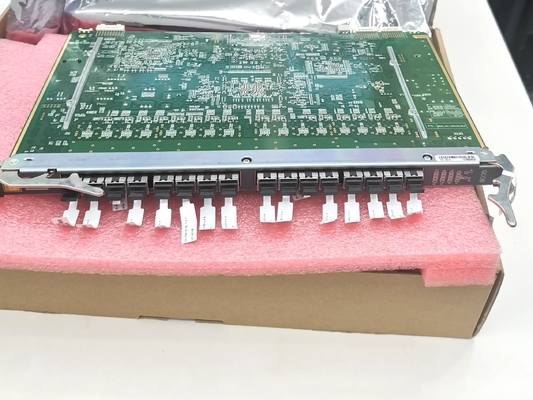

Fiberhome AN5516 GPON Optical Line Terminal PON Board C+ C++ Module
GCOB Basic principle introduction:
* Control module to complete the single board software loading, operation control, management and other functions.
* Exchange module to achieve the convergence of 16 GPON port signals.
* Interface module to realize the mutual conversion between GPON optical signal and Ethernet message.
* The power supply module provides a working power supply for each function module in a single board.
* The clock module provides a working clock for each function module in a single board.
GPON C+ Optical module introduction:
* Optical connector type:SC/PC
* Fiber type: single mode
* Maximum light splitting ratio: 1:128
1. Super Access Capability
Large capacity, high-density carrier-class multi-trillion platform, single box maximum support 256 PON port, the exchange capacity
of 4.384T, backplane broadband 14.08T
Provide 10 Gigabit high-speed board: 1 * 10GE + 4 * GE, 2 * 10GE + 2GE, 6 * GE (light, electricity optional)
Support STM-1 / E1 line uplink interface, support the maximum 16x16GE green downlink interface
1x 32/64/128 optical shunt ratio, support long transmission distance, support CLASS C + optical module
2. Full Service Access
Provide broadband, voice, IPTV, CATV, TDM and other integrated business access
Support IEEE1588V2 protocol, support 1PPS + TOD clock input
Support Layer 3 protocol such as OSPF, VRRP, and RIP
EPON / GPON / 10G PON / P2P common platform to support FTTX smooth evolution
3. High Reliability Optimization Design
The standard 19-inch architecture supports 16 service slots
Full front board, front outlet design
Supports all boards, PON optical modules
Support the business board, the master, the main redundant redundancy protection
End-to-end protection, dual pair / RSTP / LACP protection, PON port TYPE B / C protection
4. Green Technology
High-performance low-power chips, the overall power consumption is lower than the industry average
8-speed temperature control intelligent fan, support idle port sleep, deep energy saving
1. Strict quality control is carried out in every link from raw material procurement, processing, testing to packaging.
2. The waybill or bill of lading will be provided in time for tracking.
3. 12 months warranty.
