Product Details:
|
| Product Name: | NetSure 731 A41-S1/S2/S3/S8 | Output Voltage: | 48V |
|---|---|---|---|
| Output Frequen: | 45-65Hz | Input Voltage: | 220VAC |
| Output Current: | 40A | Output Power: | >500W |
| Single Package Size : | 65X35X20 Cm | Warranty: | 1 Year |
| High Light: | 48V 200A Emerson Rectifier Module,500W Emerson Rectifier Module,48V Rectifier Diode Modules |
||
48V 200A Emerson Rectifier Module 5G Communication Switching Power Supply

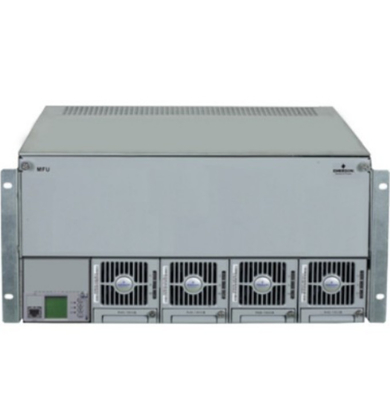

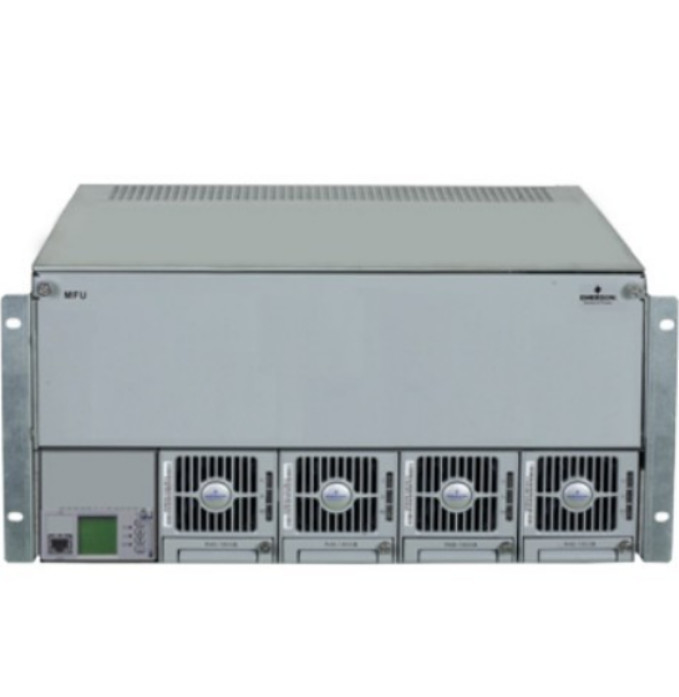

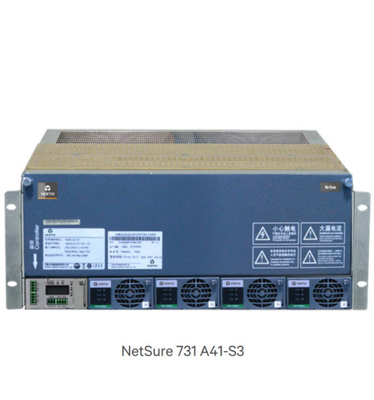

Emerson 48V 200A Embedded NetSure 731 A41-S1/S2/S3/S8 base station 5G communication switching power supply
NetSure 731 A41 series descriptions
Vertiv NetSure 731 A41 series embedded communication power system is a highly reliable, high-efficiency, high-power density embedded communication power system designed to meet the needs of efficient, green and environmentally friendly communication network construction.
NetSure 731 A41 series characteristic
1. High reliability
Wide voltage input range 80~300 vac, strong adaptability to power grid and diesel engine.
Ultra-wide working temperature range -40~65℃, adapt to various geographical areas. All-round lightning protection design on the AC side, DC side, and signal side improves the system's lightning protection capability.
2. Intelligent
With RS232/RS485, network port, dry contact and other communication interfaces, the network is flexible.
The perfect battery management function effectively prolongs the life of the battery. Compatible with solar controllers, it can form an intelligent photoelectric complementary power supply system.
3. Rapid deployment
Standard 19-inch embedded installation design.
Full front maintenance design.
Low-noise design meets various scene constructions.
Flexible installation, suitable for indoor machine room/outdoor cabinet/stairwell/basement.
Embedded/wall-mounted installation.
4. High efficiency and energy saving
The efficiency of the high-efficiency module is >96%, which saves users' electricity bills. It has the patented technology of sleep and high-efficiency module hybrid insertion and energy-saving to improve operating efficiency.
Equipped with fan intelligent speed regulation function to reduce system power consumption.
NetSure 731 A41 series specifications
| Model | NetSure 731 A41 |
| Rectifier | 4 x R48-3000A3 / R48-3000e3 / R48-3500e3 |
| Controller | M221S / M222S / M830B |
| AC distribution |
Input:1 x 125A / 2P Output:1 x 16A / 16P |
| Battery distribution | 2x 125A/ 1P |
| DC distribution |
BLVD:2 x 63A / 1P, 4 x 32A / 1P, 2 x 16/ 1P LLVD:2 x 32A / 1P, 2 x 16A / 1P |
| Lightning Protection | The AC side of the system is equipped with Class C lightning protection and the DC side is equipped with class D lightning protection |
| Dry Contact |
M221S / M222S: 3 alarm input, 4 alarm output 8 alarm output at most (optional) M830B: 8 alarm input, 8 alarm output |
| Optional | Cover, temperature sensor, battery rack, dummy plate of module |
