Product Details:
|
| Product Name: | ETP48200-C5B6 | Input Voltage: | 220-380V AC |
|---|---|---|---|
| Output Power: | 12KW | Output Current:: | 200A |
| Output Voltage:: | 48V | Output Frequency: | 50/60 Hz |
| Size(W × D × H): | 482.6 Mm × 330 Mm × 219.5 Mm | Warranty: | 1 Year |
| High Light: | HuaWei ETP48200 C5B6,12KW 48V power supply system,200A Embedded power supply system |
||

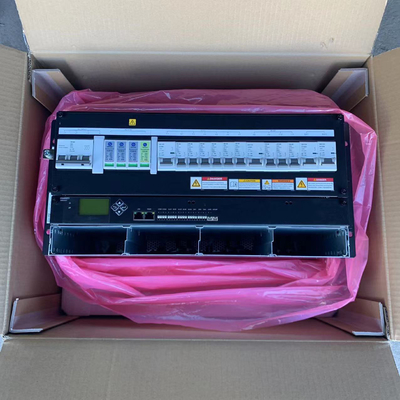

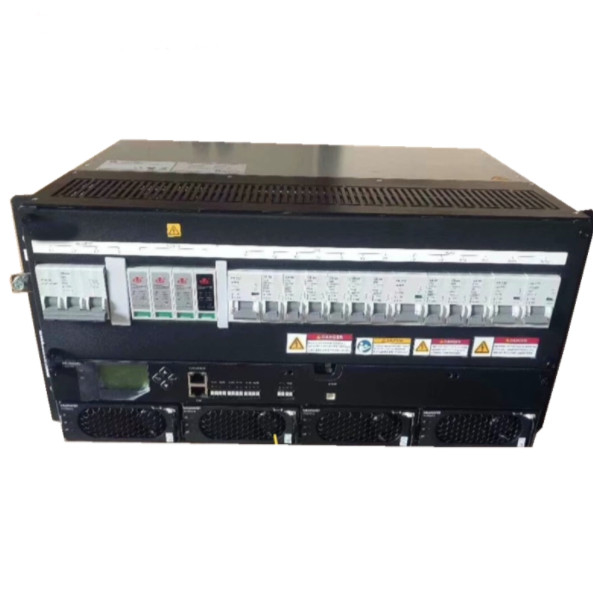

HuaWei ETP48200-C5B6 embedded communication power system 5U height base station 48V200A Empty frame without power supply
Descriptions
ETP48200-C5B6 is an AC/DC 48V embedded power system that can be installed in standard 19 or 23 inch cabinet.,maximum match 4 pcs 48V 50A rectifier, max current 200A.
Each functional unit adopts standardized size design, supports hot swap, The system can adapt to a wide range of AC input, using intelligent battery management, remote monitoring and other functions.
Tech Specs
|
Type |
ETP48200-C5B6 |
|
|
System |
Size(W × D × H) |
482.6 mm × 330 mm × 219.5 mm |
|
Weight |
≤ 20 kg(non-rectifier ) |
|
|
Cooling mode |
Natural cooling |
|
|
Installation mode |
19 inch or 23 inch relay rack or embedded cabinet |
|
|
Cabling mode |
Top in Top out |
|
|
Maintenance mode |
Front maintenance |
|
|
IP grade |
IP20 |
|
|
AC distribution |
Input mode |
220/380 Vac 3 phase ,compatible 220 Vac single phase |
|
Input voltage |
85–300 Vac,Rated voltage:220 Vac |
|
|
Frequency |
45–66 Hz,Rated efficiency:50/60 Hz |
|
|
Battery breakers |
1 × 63 A/3P |
|
|
SPD |
20/40 kA,8/20 μs |
|
|
AC output |
- |
|
|
DC distribution |
Output voltage |
42–58 Vdc,Rated:53.5 Vdc |
|
Max capacity |
12 kW |
|
|
Battery breakers |
2 × 125 A/1P |
|
|
Load breakers |
1 × 80 A/1P,6 × 32 A/1P |
|
|
Batery breakers |
1 × 80 A/1P,2 × 32 A/1P,1 × 10 A/1P |
|
|
SPD |
10/20 kA,8/20 μs |
|
|
Rectifier |
Type |
R4850G2 |
|
Rated power |
3000 W (176–300 Vac) |
|
|
Dimension(W× D× H) |
105 mm × 281 mm × 40.8 mm |
|
|
Efficiency |
> 96% |
|
