Product Details:
|
Type: | Optical Fiber Wifi Router | Fiber Port: | 4GE+1POT+1USB+WIFI,SC Single-mode |
---|---|---|---|
Model: | F673AV2 | Power: | ≤8W |
Dimension/pcs: | 240*200*58mm/0.50kgs | Fiber Interface: | SC/UPC |
Wavelength: | Tx 1310nm, Rx 1490nm | Warranty: | 1 Year |
High Light: | FTTH Optical Fiber Wifi Router,ZTE ZXHN F673AV2,GPON ONU Optical Fiber Wifi Router |
ZTE ZXHN F673AV2 FTTH is GPON ONU with 4GE port 1tel port and WIFI Dual-band 2.4G 5GHZ
odel | Configuration | Dimension/pcs | ||||
LAN | Telephone | WIFI | PPPOE | FIRMWARE | ||
F673A v2 | 4GE | 1POTS | 2.4&5.0 | SUPPORT | ENGLISH |
240*200*58mm/0.50kgs |
ZTE ZXHN F673AV2 FTTH is mainly used in the construction of FTTH (fibre-to-the-home) and FTTO (fiber-to-the-office) scenarios, and this model provides operators with green environmental protection, high reliability, easy operation and maintenance, and meeting various application scenarios. Even gigabit bandwidth brings endless possibilities for users’ home network business.
ZTE ZXHN F673AV2 FTTH features high-performance forwarding capabilities to ensure excellent experience with VoIP, Internet and HD video services. Therefore, it provides a perfect terminal solution and future-oriented service supporting capabilities for FTTH deployment.
Technical items | Descriptions |
Brand | ZTE |
Model | F673V2 |
Fiber port | 4GE+1POT+1USB+WIFI,SC single-mode, |
Wavelength | Tx 1310nm, Rx 1490nm |
Fiber interface | SC/UPC |
RX sensitivity | <-27dBm (1490nm) |
WLAN | IEEE802.11b/g/n,2*2 MIMO, 2.4G/5G WIFI,external antenna(2dBi) |
2.4GHz: 2 x 2 MIMO 802.11b/g/n ,5GHz: 2 x 2 MIMO 802.11a/n/ac | |
LAN | 1*10/100/1000Mbps adaptive Ethernet ports, full/half duplex, RJ45 interface |
L2 forwarding capability | Forwarding packets of any length at wire speed |
IPv4 L3 forwarding capability | 2Gbit/s with any length packets in downstream direction |
1Gbit/s with any length packets in upstream direction | |
IPv6 L3 forwarding capability | 2Gbit/s with any length packets in downstream direction |
1Gbit/s with any length packets in upstream direction | |
Configuration method | NMS, Web, or TR069 |
Voice protocol | SIP, H.248 |
DC power | Adapter input: 100-240 V AC, 50 – 60 Hz ; |
Adapter output: 11 – 14 V DC, 1 A | |
Button | Reset, power |
Power | ≤8W |
Operation | Working temperature: -0-+40℃ |
working humidity:5-95%(non-condensation) | |
Dimension | 250*220*65mm(length*width*height) |
Net weight | ≤0.8Kg |
1. GPON features
* Class C+ optical module
* Security authentication mode: SN,
* Password or SN+password
* Upstream/downstream FEC
2. Reliability features
* Dual systems for software protection
* Type B protection and rogue ONT detection
* Lithium battery backup and backup battery monitoring
3. Maintenance features
* Local management using Web and remote management using TR069 and OMCI
* Optical power monitoring
* 802.1ag Ethernet OAM
* Loop-line test of POTS ports, call emulation and PPPoE dialup emulation
4. Green energy-saving features
* Dynamic power consumption adjustment
* With a backup battery, the guaranteed services can be selected flexibly
PON type | Model | Interface | Type |
GPON | ZXA10 F601 | 1GE | Bridge |
ZXHN F600 | 4GE | Bridge | |
ZXHN F620 | 4GE+2POTS | Bridge/Route+Voice | |
ZXA10 F625G | 4GE+2POTS+1RF | Bridge/Route+Voice | |
ZXHN F660 | 4GE+2POTS+WIFI+1USB | Bridge/Route+Voice | |
ZXHN F668 | 4GE+2POTS+WIFI+1RF+1USB | Bridge/Route+Voice | |
ZXA10 F720G(outdoor) | 4GE+2POTS | Bridge |

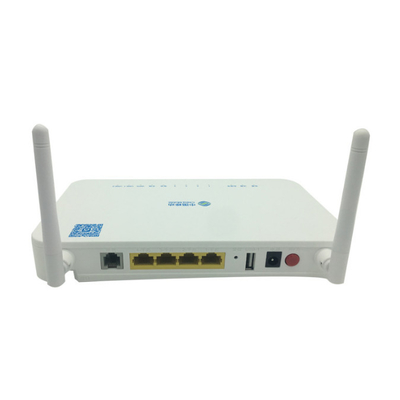

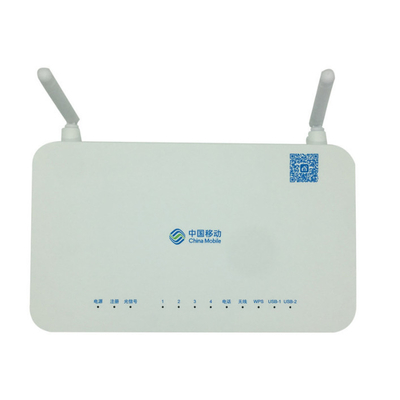

ZTE ZXHN F673AV2 FTTH Product display
Our Services
Service
1.12 months warranty
2.Professional technicians provide services
3.Technical advisory for any time
After-Sales Service
1. We can provide detail documents and remote help for device installation and configuration.
2. Warranty: 1 year. ( After the quality guarantee period began to charge appropriate maintenance service fee.)
3. Our company promises goods enjoy full return due to quality problem since goods delivered within 7 days or 15 days , returned goods must keep original state.
