HuaWei AR511GW LAV2M3 Optical Fiber Wifi Router Gateway Wireless Router

HuaWei AR511GW LAV2M3 Optical Fiber Wifi Router Gateway Wireless Router
HuaWei AR511GW LAV2M3 Optical Fiber Wifi Router Gateway Wireless Router HuaWei AR511GW LAV2M3 Optical Fiber Wifi Router Gateway Wireless Router

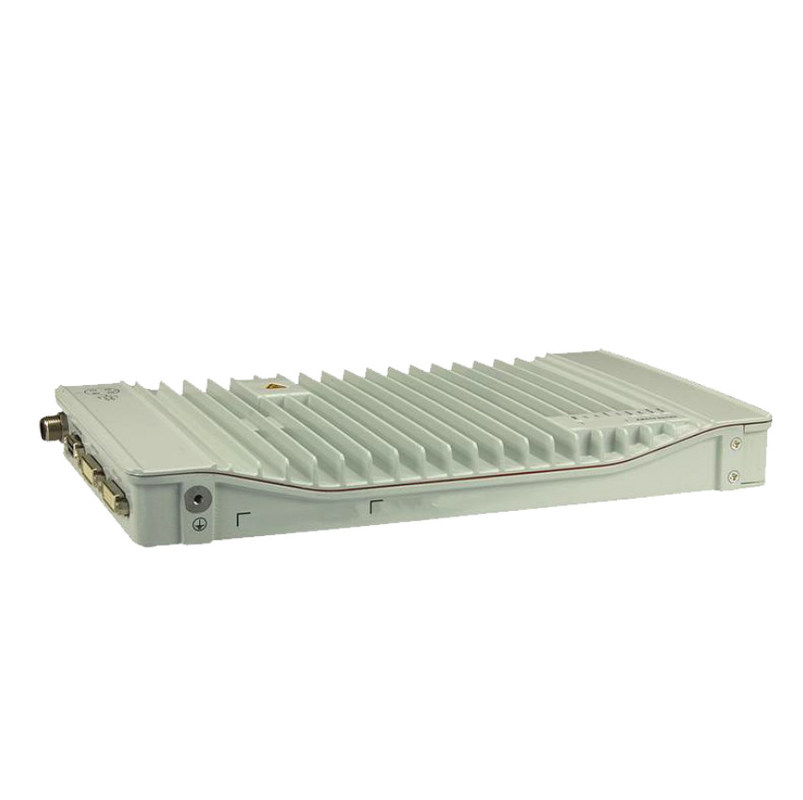

Large Image :  HuaWei AR511GW LAV2M3 Optical Fiber Wifi Router Gateway Wireless Router

Product Details:
Place of Origin: China, Guangdong
Brand Name: HuaWei
Certification: FCC,CCC,CE
Model Number: AR511GW-LAV2M3
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable

HuaWei AR511GW LAV2M3 Optical Fiber Wifi Router Gateway Wireless Router

Description
With Modem Function: AR511GW-LAV2M3 Processor: Dual-core 533MHz
Memory: 512MB Dimensions (w× D× H): 300.0mm×216.4mm×44.0mm
Weight: 2.8kg Maximum Output Current: 2A
Maximum Power Consumption: 17W Warranty: 1 Year
High Light:

AR511GW LAV2M3 Optical Fiber Wifi Router

,

AR511GW LAV2M3 Gateway Wireless Router

,

AR511GW LAV2M3 Fiber Optic Router

HuaWei AR511GW LAV2M3 Optical Fiber Wifi Router Gateway Wireless Router



HuaWei AR511GW-LAV2M3 security agile gateway wireless router unified network management bus dedicated

Exterior drawing of the AR161FG-L

1 USB interface (Host)

interface description

audio interface

attribute

description

connector type DB9 BENT FEMALE SOCKET
interface definition 2 audio outputs, 1 audio input
cable type audio cable

video interface

attribute

description

connector type DVI-I CONNECTORS
supported signal types
  • HDMI SIGNAL
  • CVBS (COMPOSITE VIDEO) SIGNAL
  • YPbPr (analog chromatic aberration) signal
cable type video cable

CONSOLE INTERFACE

attribute

description

connector type MicroUSB, type B mother seat
complies with standards USB 2.0
working mode Duplex UART (Universal Asynchronous Receiver/Transmitter)
cable type MicroUSB cable



3G/LTE ANTENNA INTERFACE

attribute

description

connector type SMA-K (MALE THREAD + INNER HOLE)
interface standards and support bands
  • LTE FDD:Band 1/2/3/5/7/8/20
  • WCDMA/HSDPA/HSUPA/HSPA+:Band 1/2/5/8
  • GSM/GPRS/EDGE:850/900/1800/1900(MHz)
support rates
  • LTE FDD: 50 Mbit/s upstream, 100 Mbit/s down
  • DC-HSPA+: 5.76 Mbit/s up, 42 Mbit/s down
  • HSPA+: 5.76Mbit/s up, 21.6Mbit/s down
cable type



GPS ANTENNA INTERFACE

attribute

description

connector type SMA-K (MALE THREAD + INNER HOLE)
support for frequency bands 1575 MHz
cable type GPS+LTE DIVERSITY PULLS AWAY ANTENNAS

GE ELECTRICAL INTERFACE

attribute

description

connector type RJ45
complies with standards IEEE802.3,IEEE802.3u,IEEE802.3ab
interface properties

MDI/MDIX

illustrate:
  • MDI (Medium Dependent Interface) is an abbreviation of ethernet media related interface, and the Ethernet interface on the general network card is mostly of this type.
  • MDIX is another crossover media-dependent interface commonly used in HUB or LAN Switch.
support frame formats Ethernet_II,Ethernet_SAP,Ethernet_SNAP
supports network protocols IP
cable type ethernet cable



USB interface (Host)

attribute

description

connector type TYPE A
complies with standards USB2.0
working mode Host

USB INTERFACE (OTG)

attribute

description

connector type MicroUSB, type B mother seat
complies with standards USB2.0
working mode OTG



Wi-Fi antenna interface

attribute

description

connector type RP-SMA-K (MALE THREAD + INNER PIN)
complies with standards 802.11a/b/g/n
support for frequency bands
  • 2.4GHz
  • 5.0GHz
support rates 600Mbit/s
MIMO mode (Tx×Rx) 2×2
gain 2.15dBi
support services
  • wireless layer 2/layer 3 access
  • wireless encryption
  • wireless security
cable type Wi-Fi column pull-away antenna


specifications



project

description

processor Quad-core 1.2GHz
memory 2GB
Nand flash memory 2GB
EMMC flash memory 4GB
Micro SD card (default sd1) not
hard disk not supported
dimensions (w× d× h) 275.0mm×160.0mm×30.0mm
weight 1.3kg
RATED INPUT VOLTAGE (DC)

12V/24V

illustrate:

PROVIDES 2 DC POWER SUPPLIES AND SUPPORTS LOCK CONTROL.

MAXIMUM INPUT VOLTAGE (DC) 8V DC~36V DC
maximum output current 4A
RPS POWERED not supported
PoE powered not supported
maximum power consumption 400
duct (front panel) not
management interface not
CONSOLE INTERFACE 1 pcs (MicroUSB)
USB 2.0 INTERFACE 1 pcs
service interfaces come standard

WAN SIDE INTERFACE: 2 GE ELECTRICAL INTERFACES, 2 3G/LTE ANTENNA INTERFACES

LAN side interface: 2 Wi-Fi antenna interfaces

MULTIMEDIA SERVICE INTERFACE: 1 GPS ANTENNA INTERFACE, 1 AUDIO INTERFACE, 2 VIDEO INTERFACES

expansion slots not supported
storage temperature -40°C~+85°C
operating altitude less than 5000m
BOM ENCODING 50010176





HuaWei AR511GW LAV2M3 Optical Fiber Wifi Router Gateway Wireless Router 0HuaWei AR511GW LAV2M3 Optical Fiber Wifi Router Gateway Wireless Router 1



FAQ

1. How do you control the quality?

A: All products are tested for simulated usage scenarios, load, full load, and current sharing before shipment to ensure product quality.



2. What is your minimum order quantity?

A: There is no minimum order quantity, you can also make one. The only difference is the price and schedule.



3. Can you introduce your company?

A: I am honored. I will send you the company's introduction document later, so that you can introduce our company's information more comprehensively and directly.



4. What are the advantages of your company?

A: Sufficient inventory, to provide guarantee for subsequent update and replenishment, flexibly provide according to the different needs of different customers, and provide different solutions.



5. Can I send samples? Do you report it to me along with the price?

A: You can send samples, and the samples are subject to large size, and you need to bear the freight.



6. How does your company deal with quality issues?

A: Our company has been in this industry for more than 10 years. Already have a certain degree of popularity.

We will analyze it carefully. If it is really our quality problem, you can rest assured that it will act in accordance with the contract and will never give you any worries.
