Product Details:
|
| Model Number: | FW-3X40G-QSFP+ | Description: | 3-port 40G Flexible Card Line Processing Board 40G-QSFP+ |
|---|---|---|---|
| Weight: | 0.85kg | Maximum Heat Consumption: | 187.7BTU/hour |
| Typical Heat Consumption: | 170.6BTU/hour | Dimension(D*W*H Mm): | 178mm×225mm×38mm |
| Maximum Power Consumption: | 250W | Warranty: | 1 Year |
| High Light: | USG900 GPON Optical Line Terminal,USG900 Interface Board,FW-3X40G-QSFP+ |
||

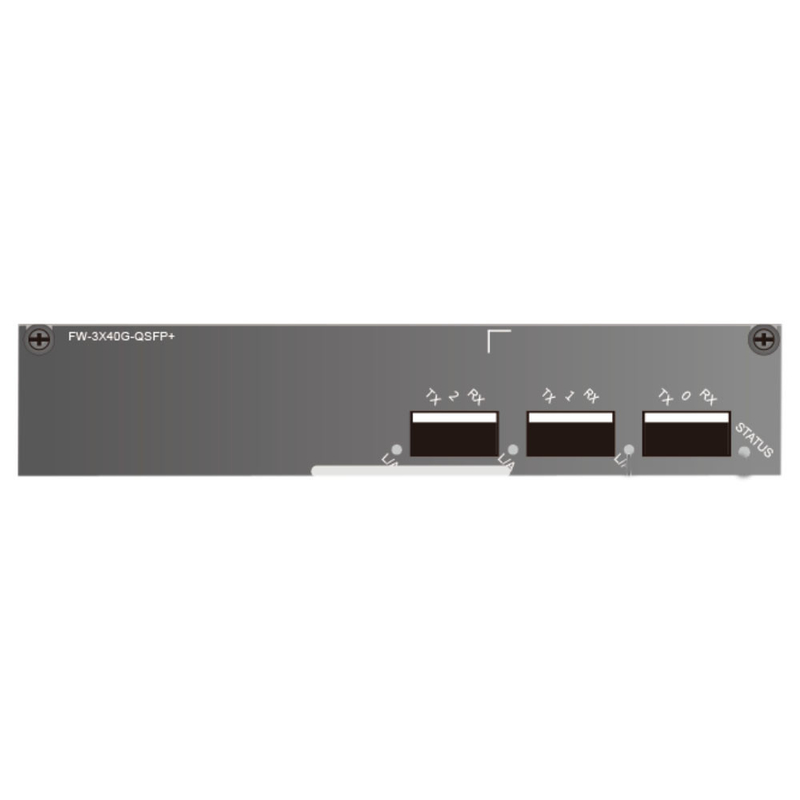

HuaWei firewall USG900 series interface board FW-3X40G-QSFP+ 3-port 40G flexible card line processing board 40G-QSFP+
|
Veneer name |
Matching frame |
Matching flexible card line processing board |
Companion software version |
|---|---|---|---|
| FW-3X40G-QSFP+ |
|
|
V500R001C50 RELEASE AND LATER RELEASES |
Leds illustrate
| Veneer name | Power consumption | Frame length |
| Ethernet service access board | ||
| H801ETHB |
STATIC: 20W :21W |
2052 bytes, increased to 9216 bytes after the Jumbo Frame function is enabled |
|
Attribute |
Description |
|---|---|
| Connector type | LC/PC |
| Optical interface properties | Determined by the selected QSFP+ optical module. Optional optical module properties can be found in 40Gbit/s QSFP+ Optical Module. |
| Working mode | Full duplex is supported |
| Complies with standards | IEEE 802.3ae |
| Support frame formats | Ethernet_II,Ethernet_SAP,Ethernet_SNAP |
| Supports network protocols | IP |
FW-3X40G-QSFP+ technical parameters
|
Parameter |
Description |
|---|---|
| Board name silk screen printing | FW-3X40G-QSFP+ |
| Part number | 03056848 |
| Veneer size (width× depth× height) | 178mm×225mm×38mm |
| Typical power consumption | 200 |
| Maximum power consumption | 250 |
| Typical heat consumption | 170.6BTU/hour |
| Maximum heat consumption | 187.7BTU/hour |
| Veneer weight | 0.85kg |
