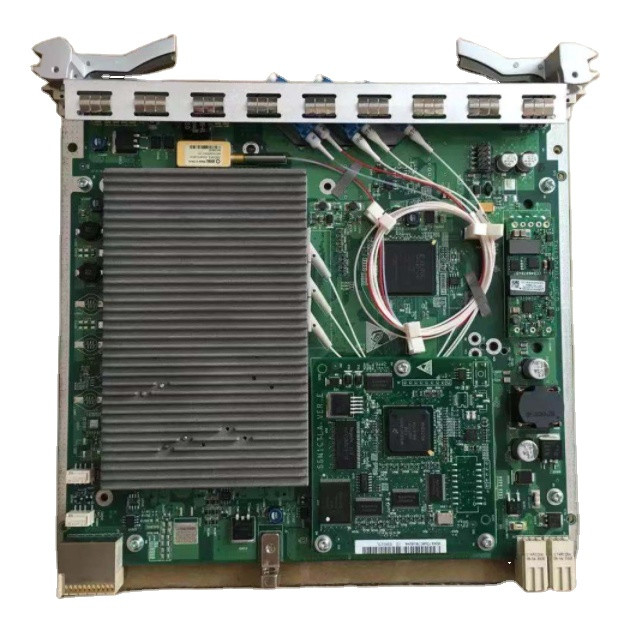

OptiX OSN Huawei Business Board TN12OBU103 For OSN6800 OSN8800

OptiX OSN Huawei Business Board TN12OBU103 For OSN6800 OSN8800
OptiX OSN Huawei Business Board TN12OBU103 For OSN6800 OSN8800

Large Image :  OptiX OSN Huawei Business Board TN12OBU103 For OSN6800 OSN8800

Product Details:
Place of Origin: Guangdong, China
Brand Name: HuaWei
Certification: FCC,CCC,CE
Model Number: TN12OBU103
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable

OptiX OSN Huawei Business Board TN12OBU103 For OSN6800 OSN8800

Model Number: TN12OBU103 Wavelengths: 1529 Nm To 1561 Nm
Complies With Standards: IEEE 802.3ab The Typical Gain: 20 DB
Optical-layer ASON: Supported Weight: 2.50kg
Warranty: 1 Year Basic Functionality: PROVIDES DATA ACCESS AND SWITCHING FOR 48 GE PORTS
High Light:

OptiX OSN Huawei Business Board


TN12OBU103 Huawei Business Board


CCC GPON Business Board

HuaWei business board TN12OBU103 for OSN6800 OSN8800 new original package




1. OptiX OSN equipment uses a universal switch architecture for unified grooming of packet services and TDM services. OptiX OSN equipment can work in packet mode, TDM mode, or dual-domain (packet+TDM) mode.The three modes can be smoothly switched by upgrading the software of a service board so carriers' requirements on services and networks can be met. The smooth switching between the three modes supports carriers' distributed smooth investment based on the development of the

technology and industrial chain.
Based on a universal switch architecture, OptiX OSN equipment uses the packet transmission
technology to perform efficient statistical multiplexing on data services so the transmission cost
of every bit is reduced. In addition, OptiX OSN equipment uses the Native technology to transmit
TDM services so voice services are transmitted with high quality.

Based on a universal switch architecture, OptiX OSN equipment unifiedly transmits packet
services such as 2G, 3G, and VIP private line services so network overlapping is avoided. In
addition, OptiX OSN equipment transmits TDM services. Carriers can constitute an end-to-end
packet network, dual-domain (packet+SDH) network, or hybrid (MSTP+routers) network that bears L2+L3 services. This complete packet transmission solution allows an evolution from TDM networks to all-IP networks.

2.  The OptiX OSN equipment uses the built-in WDM technology to transmit several wavelengths
over one optical fiber. In this manner, the OptiX OSN equipment can be interconnected with the
WDM equipment.
The OptiX OSN 1500 provides the built-in WDM technology. The functions of the equipment
are as follows:
• Standard DWDM wavelengths that comply with ITU-T G.694.1 can be added or dropped.
• Standard CWDM wavelengths that comply with ITU-T G.694.2 can be added or dropped.
• A set of equipment can be configured into an Optical Terminal Multiplexer (OTM) or an
Optical Add/Drop multiplexer (OADM), or both.
• Optical add/drop multiplexing boards have concatenation ports which can be used for
expansion or for adding/dropping multiple wavelengths through concatenation.
• The equipment supports Raman amplifiers which can be used in long-distance signal

• The equipment supports the automatic gain control technology, which enables the gain of
each working wavelength to change within an allowed range in all scenarios.
• The equipment supports the forward error correction (FEC) technology, which can correct
the errors generated during signal transmission and therefore improve the tolerance of
signal-to-noise ratio at the receive end and extend the length of relay sections.




Function and Feature Description
Basic function
  • Amplifies the input optical signals in C band. The total wavelengths range from 1529 nm to 1561 nm.
  • Supports the system to transmit services over different fiber spans without electrical regeneration.
Typical gain
  • The typical gain of the OBU101 is 20 dB.
  • The typical gain of the OBU103 is 23 dB.
  • The typical gain of the OBU104 is 17 dB.
  • The typical gain of the OBU105 is 23 dB.
  • The typical gain of the OBU1P3 is 18 dB.

OBU1 Specifications only provides the value of nominal gain. Actual gain includes the noise, and the value is bigger than that of nominal gain.

Online optical performance monitoring Provides an in-service monitoring port (MON). This port connects to an optical spectrum analyzer or spectrum analyzer unit to monitor the spectrum and optical performance of the multiplexed signal without affecting traffic.
Gain lock function The EDFA inside the board has the gain lock function. Adding or dropping one or more channels or optical signal fluctuation does not affect the signal gain of other channels.
Working mode

Supports the gain locking and power locking modes.

  • In the gain locking mode, the gain of the board is tunable and users can query the actual gain of the board. The gain locking mode is enabled by default.
  • The power locking mode applies to scenarios in which there is only dummy light to lock the output power of the board.
Transient control function The EDFA inside the board has the transient control function. When channels are added or dropped, the board can suppress the fluctuation of the optical power in the path so as to implement the smooth upgrading and expansion.
Alarms and performance events monitoring
  • Detects and reports the optical power.
  • Monitors the temperature of the pump laser.
  • Detects the pump driving current, back facet current, pump cooling current, temperature of the pump laser and the ambient temperature of the board.
Optical-layer ASON All OBU1 boards except TN13OBU1P3: Supported

TN13OBU1P3: Not supported

The TN11OBU1 board does not support the setting of Equalization Bas
