Product Details:
|
| Model Number: | ES0D0G24SA00 | Connector Type: | SFP |
|---|---|---|---|
| Maximum Power Consumptiona (W): | 45W | Dimensions Of Front Panel (H X W X D): | 397.2mm×430.4mm×35.1mm |
| Weight: | 2.22 Kg | Meet The Criteria: | IEEE 802.3ab |
| Supports Network Protocols: | IP | Warranty: | 1 Year |
| High Light: | 24 port Optical Interface Board,100M Gigabit Optical Interface Board,HuaWei ES0D0G24SA00 |
||

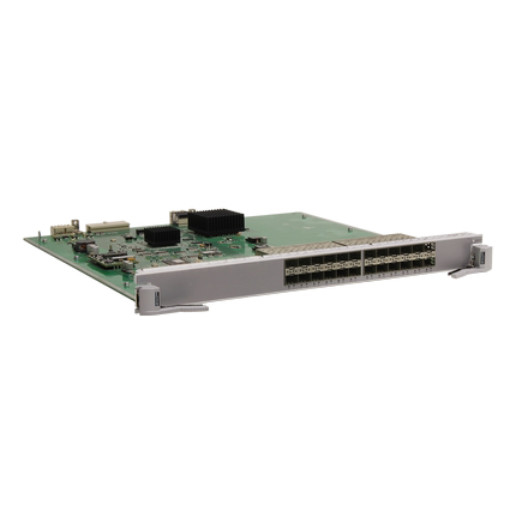

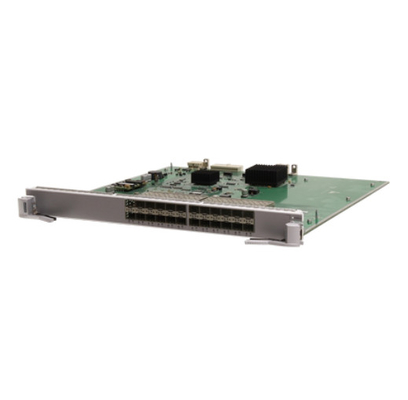

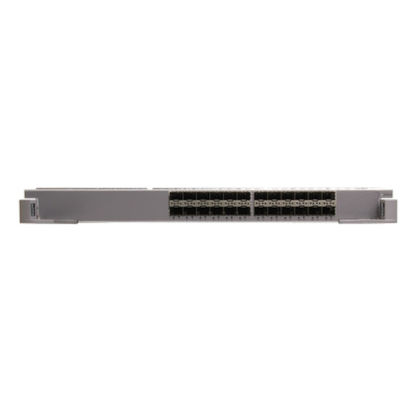

HuaWei ES0D0G24SA00 24-port 100M/Gigabit Ethernet Optical Interface Board (SA, SFP)
|
veneer name |
S7700 FRAME |
|---|---|
| ES0D0G24SA00 |
S7703 FRAME, S7706 FRAME, S7712 FRAME: V100R003C01 AND LATER VERSIONS ARE SUPPORTED S7703 PoE Frame, S7706 PoE Frame: V200R013C00 and later versions supported S7710 FRAME: NOT SUPPORTED |
The ES0D0G24SA00 can be installed in:
|
function |
description |
|---|---|
| basic functionality | PROVIDES DATA ACCESS AND EXCHANGE OF 24 GE OPTICAL PORTS |
| distributed forwarding | data is forwarded in parallel through a distributed data plane |
| hot-swappable | backing |
100/1000BASE-X OPTICAL INTERFACE
|
attribute |
description |
|---|---|
| connector type | SFP |
| optical interface properties |
THIS IS DETERMINED BY THE SELECTED SFP OPTICAL MODULE. For more information about the optical modules supported by the ES0D0G24SA00 and their properties, see FE SFP/eSFP packaged optical modules, GE eSFP packaged optical modules, GE-CWDM eSFP packaged color optical modules, and GE-DWDM eSFP packaged color optical modules. |
| complies with standards | IEEE 802.3z |
| support frame formats | Ethernet_II,Ethernet_SAP,Ethernet_SNAP |
| supports network protocols | IP |
Properties of optical interface (using photoelectric modules)
|
attribute |
description |
|---|---|
| connector type | SFP |
| optical interface properties |
THIS IS DETERMINED BY THE SELECTED SFP PHOTOELECTRIC MODULE. For more information about the optoelectronic modules supported by the single board and their properties, see GE SFP package optoelectronic modules (supporting 10M/100M/1000M rates). |
| complies with standards | IEEE 802.3ab |
| support frame formats | Ethernet_II,Ethernet_SAP,Ethernet_SNAP |
| supports network protocols | IP |
|
parameter items |
description |
|---|---|
| physical parameters |
|
