Product Details:
|
Product Name: | Echolife ONT Huawei HG | Type: | ONT ONU |
---|---|---|---|
Application: | FTTH FTTB FTTX FTT | Selling Units: | Single Item |
Single Package Size : | 130X105X30 Cm | Single Gross Weight: | 0.500 Kg |
Package Type: | New One In Box | Warranty: | 1 Year |
High Light: | HG8310M Fiber Optical Router,HG8310M GPON ONU,Single Port HG8310M |

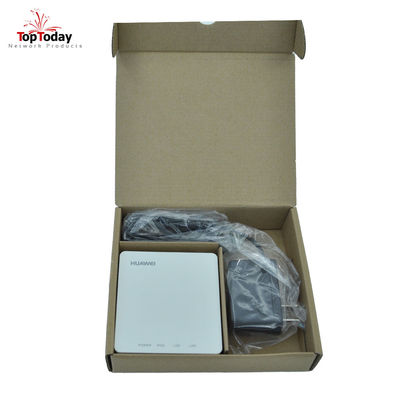

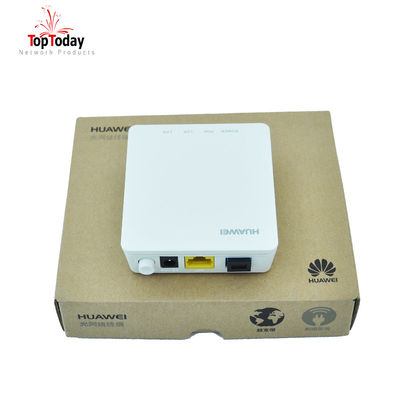

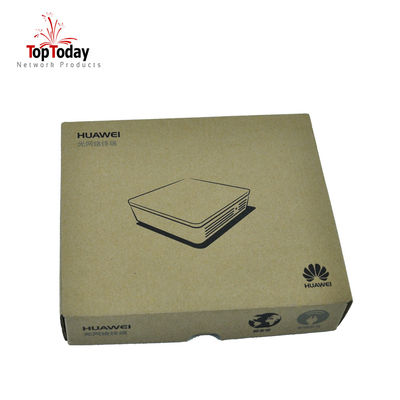

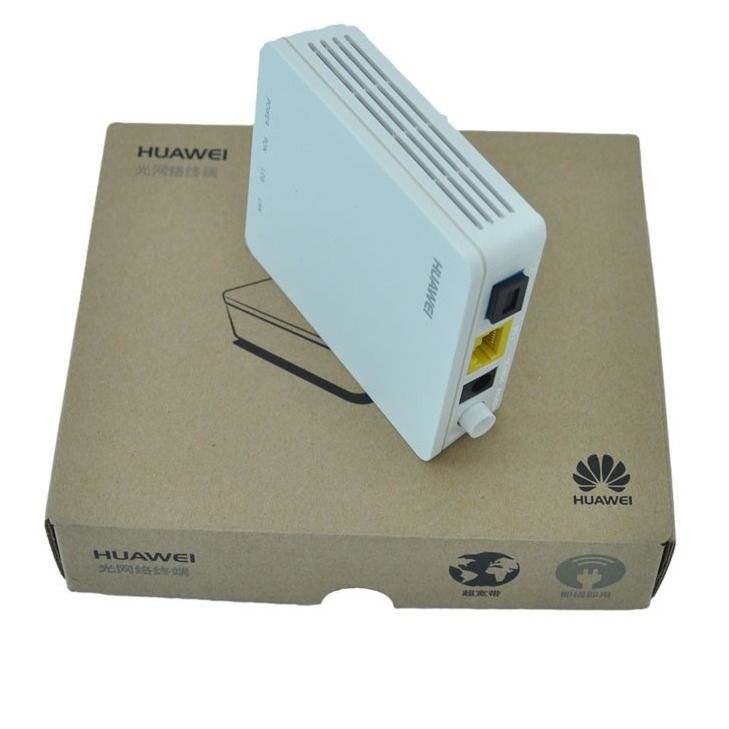

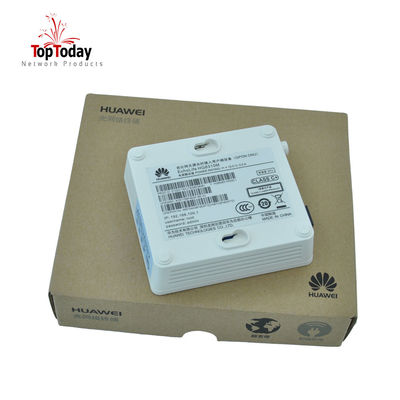

HuaWei ONT HG8310M Single Port GPON ONU Optical Fiber Wifi Router
Descriptions
The Echo Life HG8310M is an indoor optical network terminal (ONT) in Huawei FTTH solution. By using the GPON technology, ultra-broadband access is provided for home and SOHO users. The HG8310M provides one GE Ethernet port. The HG8310M features high-performance forwarding capabilities to ensure excellent experience with VoIP, Internet and HD video services.
Features
Plug-and-play: services can be deployed by one click on the NMS, and on-site configuration is not required.
Remote diagnosis: Remote fault locating is implemented by the loop-line test of POTS ports, call emulation and PPPoE dialup emulation initiated by the NMS.
Link monitoring: E2E link detection is achieved using 802.1ag Ethernet OAM.
High speed forwarding: 900 Mbit/s forwarding in the NAT scenario.
IPv6 Capability: support IPv6/IPv4 dual stack and DS-Lite.
Specifications
Technical items |
Descriptions |
Fiber port |
1 GPON interface, SC single-mode/single-fiber, Downstream rate 2.5Gbps, Upstream rate 1.25Gbps |
Wavelength |
Tx 1310nm, Rx 1490nm |
Fiber interface |
SC/PC |
RX sensitivity |
<-28dBm (1490nm) |
WLAN |
IEEE802.11b/g/n,300Mbps, a built-in antenna |
LAN |
1*10/100/1000Mbps adaptive Ethernet ports, full/half duplex, RJ45 interface |
Throughput |
Throughput can reach 900Mbps or more |
|
|
DC power |
12V 1A, external AC-DC power adapter |
Button |
Reset, power |
Power |
≤8W |
Operation |
Working temperature: -5-+55℃ working humidity:10-90%(non-condensation) |
Storage |
Storage temperature: -30℃-+60℃ storage humidity: 10-90%(non-condensation) |
Dimension |
130*105*30mm(length*width*height) |
Net weight |
≤0.2Kg |
