Product Details:
|
| Application: | FTTH FTTB FTTX Network | Setup Interface: | English |
|---|---|---|---|
| Keywords: | HS8546V5 | Power Adaptor: | EU,US,AU,UK |
| Color: | White | Warranty: | 1 Year |
| Dimension: | 155*145*9mm | Single Gross Weight: | 0.500 Kg |
| High Light: | ONU HS8546V5,4GE Optical Fiber Router,1TEL Optical Fiber Router |
||

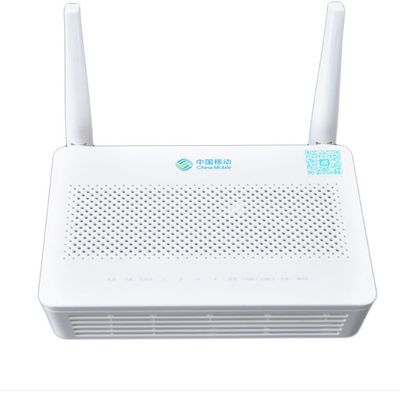

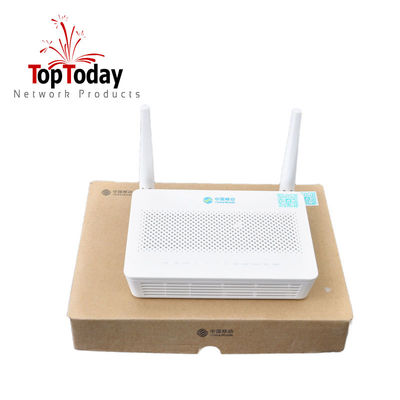

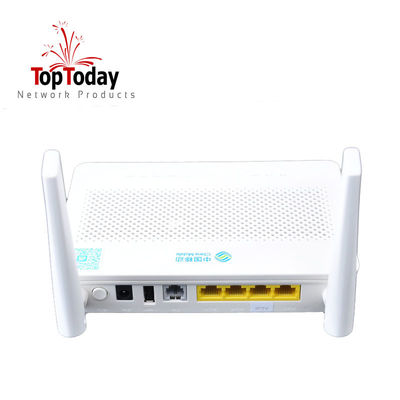

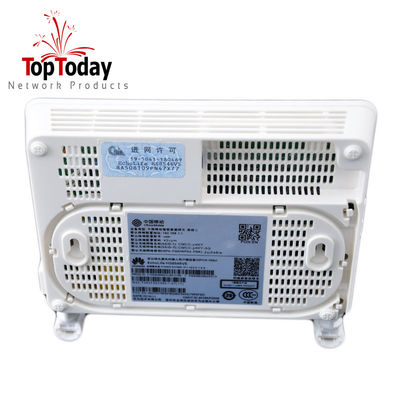

HuaWei GPON ONU WIFI HS8546V5 ONU 4GE+1TEL+USB+WIFI 2.4G 5G
Overview
The Gepon Onu HS8546V5, an optical network terminal (ONT), is a high-end home gateway in HW FTTH solution. By using the GPON technology, ultra-broadband access is provided for home and SOHO users. The HS8546V5 provides 1* POTS ports, 4*GE auto-adapting Ethernet ports, and 2.4G & 5G Wi-Fi port. The HS8546V5 features high-performance forwarding capabilities to ensure excellent experience with VoIP, Internet and HD video services. Therefore, the HS8546V5 provides a perfect terminal solution and future oriented service supporting capabilities for FTTH deployment.
Features
1. Maintenance features
*Local management using Web and remote management using TR069 and OMCI
*Optical power monitoring
*802.1ag Ethernet OAM
*Loop-line test of POTS ports,call emulation and PPPoE dialup emulation
2. Green engery-saving features
*Dynamic power consumption adjustment
*With a backup battery, the guaranteed services can be selected flexibly
3. GPON features
*Class B+ optical module
*Acceptance sensitivity: -27dBm
*Overload optical power: -8dBm
*Wavelength: Upstream 1310nm, Downstream 1490nm
*Wavelength blocking filter (WBF) supporting G.984.5 protocol
*Authentication method: Password/LOID/SN
*FEC (Forward Error Correction)
*DBA supporting SR, NSR
4. 2.4G % 5G Wi-Fi
*IEEE 802.11 b/g/n (2.4G);
IEEE 802.11 a/n/ac (5G)
*2x2 MIMO (2.4G & 5G)
*Antenna again: 5dBi
*WMM (Wi-Fi Multi Media)
*WPS
*2.4G & 5G Concurrency
*Air interface rate:300Mbit/s (2.4G) 867 Mbit/s (5G)
5. Reliability features
*Dual systems for software protection
*Type B protection and rogue ONT detection
*Lithium battery backup and backup battery monitoring
6. Voice features
*SIP and H.248 protocols
*Media stream and signaling stream separation
7. Multicast features
*IGMP V2&V3 snooping/IGMP proxy
Product Highlights
1.Plug-and-play (PnP): Internet, IPTV and VoIP services can be deployed by one click on the NMS and on-site configuration is not required.
2.Remote diagnosis: Remote fault locating is implemented by the loop-line test of POTS ports, call emulation and PPPoE dialup emulation initiated by the NMS.
3.Link monitoring: E2E link detection is achieved using 802.1ag Ethernet OAM.
4.High speed forwarding: GE line rate forwarding in the bridging scenario and 900 Mbit/s forwarding in the NAT scenario.
5.Green energy-saving: 25% power consumption is saved with highly integrated system on chipset (SOC) solution, in which, a single chip integrates with PON, voice, gateway and LSW modules.
Specification
|
Model |
Configuration |
Dimension/pcs |
||||
|
LAN |
Telephone |
Wifi |
PPPOE |
Firmware |
||
|
HS8546V5 |
4GE |
1pots |
2.4G/5G |
yes |
English |
176*138.5*28mm/0.5kgs |
|
Remarks |
2 USB, support IEEE802.11ac , Dual frequency WIFI, WirelessNet-2.4G/5G |
|||||
