Product Details:
|
| Product Name: | CCR1016-12G | Application: | Enterprise |
|---|---|---|---|
| Function: | Firewall, QoS, VPN | LAN Ports: | 12 |
| WAN Ports: | 12 | DRAM Memory: | 2GB |
| Size: | 355×145×55mm | Warranty: | 1 Year |
| High Light: | 1000Mbps Fiber Optic Switch,SOHO Gigabit Access Point |
||

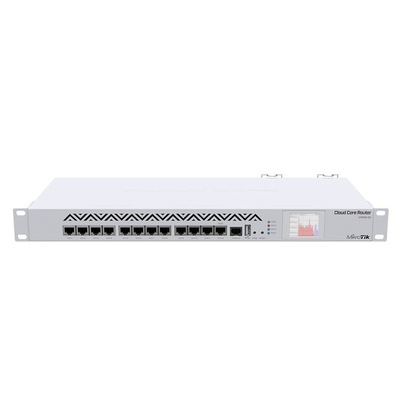

MikroTik CCR1016-12G 16-core wired all-gigabit telecom smart router ROS L6 authorization router
Descriptions of CCR1016-12G
CCR1016 is an industrial grade super fast router with cutting edge 16 core CPU. If you need many millions of packets per second - Cloud Core Router is your best choice.
The device is available with a 1U rackmount case (CCR1016-12G) or without the case as a board unit (CCR1016-12G-BU), has twelve Gigabit ethernet ports, a serial console cable and a USB port.
The CCR1016-12G has two SODIMM slots, by default it is shipped with 2GB of RAM, but has no memory limit in RouterOS (will accept and utilize 16GB or more).
Features of CCR1016-12G
• 16 core networking CPU, 1.2GHz clock per core
• 12 Mbytes total on-chip cache
• State of the art TILE GX architecture
• Ports directly connected to CPU
• 1U rackmount case option
• 12x Gigabit ports
• Color touchscreen LCD display
• Up to 1.5 mpps throughput in regular mode
• Up to 17.8 mpps throughput in fastpath mode (wire speed)
• Up to 12 Gbps throughput with RouterOS queue/firewall configuration
• 3-10x faster than RB1100AHx2
Detailed parameters of CCR1016-12G
Specifications
|
Details |
|
|---|---|
|
Product code |
CCR1016-12G |
|
Architecture |
TILE |
|
CPU |
TLR4-03680 |
|
CPU core count |
36 |
|
CPU nominal frequency |
1.2 GHz |
|
Dimensions |
443 x 193 x 44 mm |
|
RouterOS license |
6 |
|
Operating System |
|
|
Size of RAM |
4 GB |
|
Storage size |
1 GB |
|
Storage type |
NAND |
|
Tested ambient temperature |
-20°C to 60°C |
|
MTBF |
Approximately 200'000 hours at 25C |
Powering
|
Details |
|
|---|---|
|
PoE in |
Passive PoE |
|
PoE in input Voltage |
8-30 V |
|
Number of DC inputs |
2 (DC jack, PoE-IN) |
|
DC jack input Voltage |
8-30 V |
|
Max power consumption |
28 W |
|
Max power consumption without attachments |
6 W |
|
FAN count |
Passive |
PoE-out
|
Details |
|
|---|---|
|
PoE-out ports |
Ether10 |
|
PoE out |
Passive PoE |
|
Max out per port output (input < 30 V) |
510 mA |
|
Max total out (A) |
510 mA |
Ethernet
|
Details |
|
|---|---|
|
10/100 Ethernet ports |
5 |
|
10/100/1000 Ethernet ports |
5 |
FAQ
Q: What are your advantages?
A: We are selected partners and professional manufacturers in the field of network equipment for more than ten years.
We provide customers with original products at preferential prices.
We have a professional sales team to provide 24-hour free consultation, and we also have a professional technical team and after-sales department.
Q: What is the warranty of your product?
A: One year.
Q: What is the minimum order quantity for your products?
A: One.
Q: What are the payment terms?
A: Pre T/T or paypal or Western Union or Alibaba trade guarantee order.
Q: What is a package?
A: Original packaging. For the outside, we pack it in an empty box to prevent damage during transportation and ensure that you receive the goods in good condition.
