Product Details:
|
| Brand Name: | UBNT | Model Number: | AMO-2G13 |
|---|---|---|---|
| Dimensions: | 1390 X 122 X 105 Mm | Frequency: | 2.35 - 2.55 GHz |
| Max. VSWR: | 1.7:1 | Cross-Pol Isolation: | 25 DB Min. |
| Weight With Mount: | 2.4 Kg (5.29 Lb) | Gain: | 13 DBi |
| Wind Survivability: | 200 Km/h (125 Mph) | Warranty: | 1 Year |
| High Light: | MIMO Dual Polarization fiberglass antenna,13 dBi fiberglass whip antenna,Omnidirectional fiberglass antenna |
||

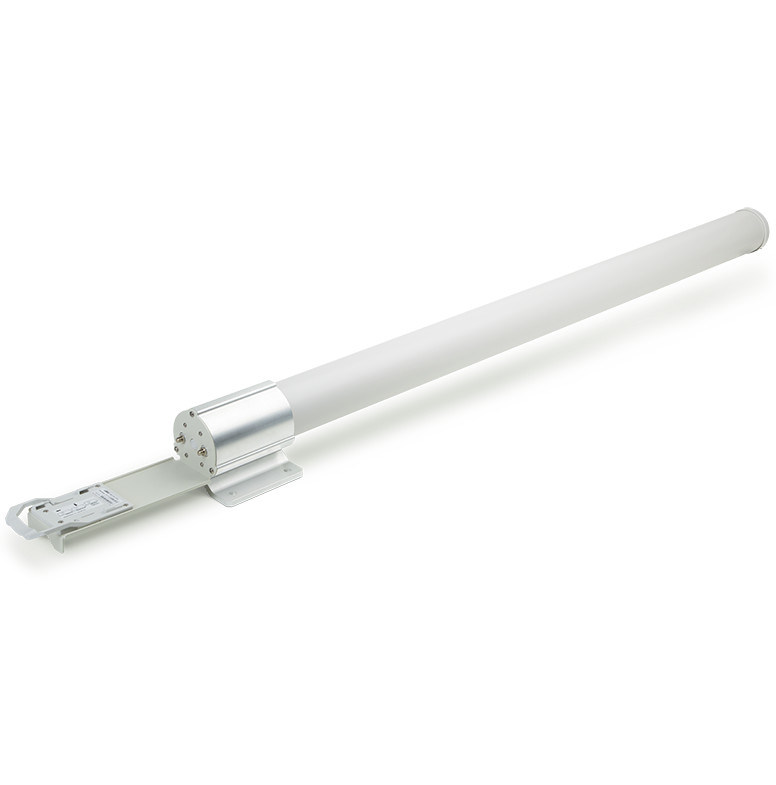

UBNT AMO-2G13 2.4G 13dB MIMO dual polarization fiberglass omnidirectional antenna RM2 gain antenna
Overview
The airMAX® Omni Antenna is a carrier-class 2x2 dual-polarity MIMO omnidirectional antenna designed to seamlessly integrate with Rocket radios (Rocket sold separately).
On the right is one example of how the airMAX Omni Antenna can be deployed in a Point-to-MultiPoint (PtMP) network.
Flexibility
To support your specific application, the airMAX Omni Antenna is available in multiple frequency models: • 2.4 GHz • 3 GHz • 5 GHz
Breakthrough Design
The airMAX Omni Antenna is the first of its kind to feature a patented, dual-polarity omni design.
Omnidirectional Coverage
The airMAX Omni Antenna provides powerful 360° coverage, 2x2 MIMO performance in Line-of-Sight (LoS) or Non-Line-of-Sight (NLoS) applications.
Durable Construction
Each airMAX Omni Antenna features a robust mechanical design for outdoor application use.
Plug and Play Integration
Every airMAX Omni Antenna has a built-in Rocket mount, so installation requires no special tools. Snap the Rocket securely into place and mount the antenna; you then have the optimal combination of Rocket radio and airMAX Omni Antenna for your application.
Pair the Rocket radio with the airMAX Omni Antenna to create a powerful omnidirectional basestation. This combination gives network architects unparalleled flexibility and convenience.
| AMO-2G13 | |
|
Dimensions |
1390 x 122 x 105 mm (54.72 x 4.8 x 4.13") |
|---|---|
|
Weight with Mount |
2.4 kg (5.29 lb) |
|
Frequency |
2.35 - 2.55 GHz |
|
Gain |
13 dBi |
|
Elevation Beamwidth |
7° |
|
Electrical Downtilt |
2° |
|
Max. VSWR |
1.7:1 |
|
Wind Survivability |
200 km/h (125 mph) |
|
Wind Loading |
111.2 N @ 200 km/h (25 lbf @ 125 mph) |
|
Polarization |
Dual Linear |
|
Cross-Pol Isolation |
25 dB Min. |
|
RF Connectors |
2 RP-SMA Connectors (Weatherproof) |
|
Mounting |
Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included |
|
ETSI Specification |
EN 302 326 DN2 |
