Product Details:
|
Brand Name: | UBNT | Model Number: | AF-2G24-S45 |
---|---|---|---|
Dimensions: | 650 X 650 X 295 Mm | Frequency: | 2.7 GHz |
Weight (Mount Included): | 200 Km/h (125 Mph) | Gain: | 24 DBi |
Wind Survivability: | 9.8 Kg (21.61 Lb) | Warranty: | 1 Year |
High Light: | 2.7 GHz Powerful Communication Antenna,200km/h Remote Link Communication Antenna,airFiber AF-2X radio Communication Antenna |

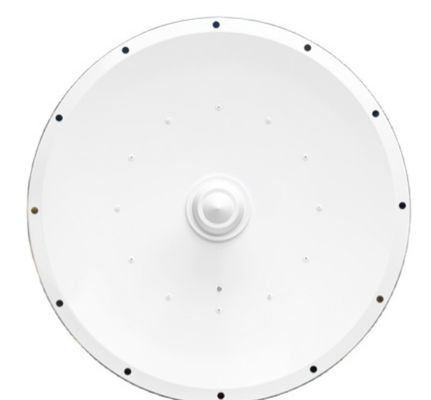

UBNT AF-2G24-S45 Outdoor remote link powerful communication antenna
Installation Requirements
airFiber AF-2X radio (sold separately)
Phillips screwdriver
16 mm wrench
24 mm wrench
Clear view of the sky for proper GPS operation
Mounting point:
At least 1 m below the highest point on the structure
For tower installations, at least 3 m below the top of the tower
Ground wire – min. 10 AWG (5 mm2) and max. length: 1 m. As a safety precaution, ground the airFiber radio to a grounded mast, pole, tower, or grounding bar.
|
WARNING: Failure to properly ground your airFiber radio will void your warranty. |
---|
Shielded Category 5 (or above) cabling should be used for all wired Ethernet connections and should be grounded through the AC ground of the PoE.
Specifications
AF-2G24-S45 |
|
Dimensions |
650 x 650 x 295 mm (25.6 x 25.6 x 11.6") |
---|---|
Weight |
9.8 kg (21.61 lb) |
Frequency |
2.3 - 2.7 GHz |
Gain |
24 dBi |
+45° Beamwidth |
6.6° (3 dB) |
-45° Beamwidth |
6.8° (3 dB) |
Front-to-Back Ratio |
28 dB |
Max. VSWR |
1.6:1 |
Wind Survivability |
200 km/h (125 mph) |
Wind Loading |
787 N @ 200 km/h (177 lbf @ 125 mph) |
Polarization |
Dual Linear |
Cross-Pol Isolation |
35 dB Min. |
ETSI Specification |
EN 302 326 DN2 |
Mounting |
Universal Pole Mount, airFiber X Radio Bracket, and Weatherproof RF Jumpers Included |
