Product Details:
|
| Brand Name: | UBNT | Model Number: | AM-5G19-120/AM-5G20-90 |
|---|---|---|---|
| Dimensions: | 700 X 135 X 73 Mm | Gain: | 10 DBi |
| Weight: | 5.9 Kg | Operating Frequency: | 5.15 - 5.85 GHz |
| Warranty: | 1 Year | Wind Survivability: | 200 Km/h |
| High Light: | AM-5G19-120,90 Degree antena wifi sectoral,Directional 5G antena wifi sectoral |
||

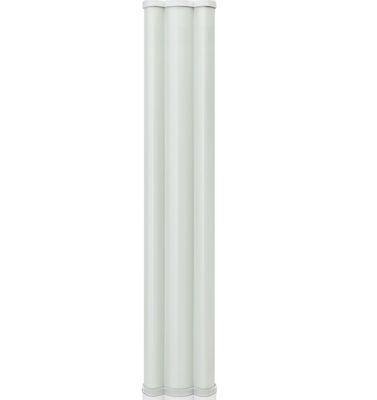

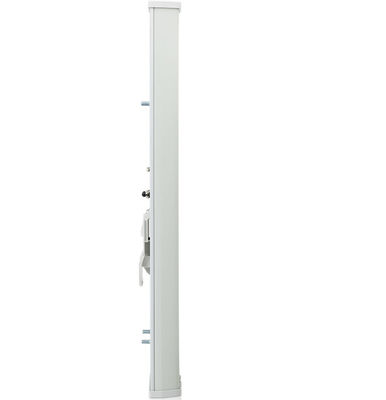

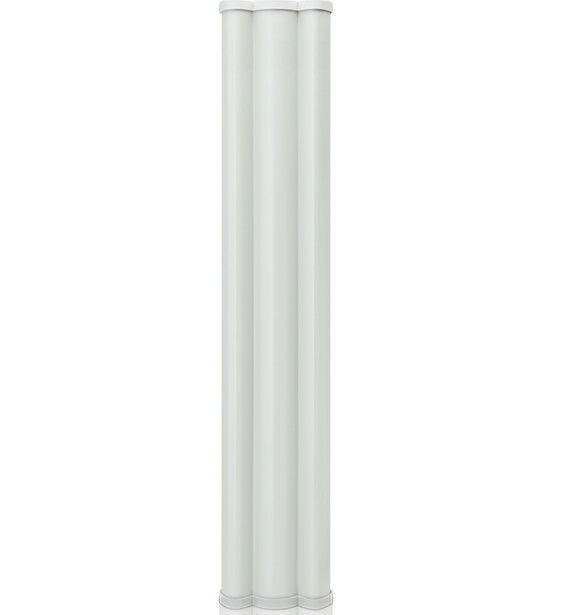

UBNT AM-5G19-120/AM-5G20-90 120 degree/90 degree sector dual polarization directional 5G antenna wifi coverage
Installation Requirements
Rocket®M5 or RocketM5 GPS (sold separately)
12 mm and 13 mm wrenches
Shielded Category 5 (or above) cabling should be used for all wired Ethernet connections and should be grounded through the AC ground of the PoE.
We recommend that you protect your networks from harmful outdoor environments and destructive ESD events with industrial-grade, shielded Ethernet cable from Ubiquiti.
Specifications
|
AM-5G19-120/AM-5G20-90 |
|
|
Dimensions |
700 x 135 x 73 mm (27.56 x 5.32 x 2.87") |
|---|---|
|
Weight (Mount Included) |
5.9 kg (13 lbs) |
|
Frequency |
5.15 - 5.85 GHz |
|
Gain |
18.6 - 19.1 dBi |
|
HPOL Beamwidth |
123° (6 dB) |
|
VPOL Beamwidth |
123° (6 dB) |
|
Elevation Beamwidth |
4° |
|
Electrical Downtilt |
2° |
|
Max. VSWR |
1.5:1 |
|
Wind Survivability |
200 km/h (125 mph) |
|
Wind Loading |
137.9 N @ 200 km/h (31 lbf @ 125 mph) |
|
Polarization |
Dual Linear |
|
Cross-Pol Isolation |
28 dB Min. |
|
ETSI Specification |
EN 302 326 DN2 |
|
Mounting |
Universal Pole Mount, Rocket Bracket, and Weatherproof RF Jumpers Included |
