Product Details:
|
| Product Name: | UF-Nano | Brand Name: | UBNT |
|---|---|---|---|
| Dimensions: | 77 X 77 X 28 Mm | WAN Ports: | 1x GPON Port |
| VAN Ports: | 1x Gigabit Ethernet Port | Weight: | 110 G (3.88 Oz) |
| GPON Speeds: | 2.488 Gbps Downstream (RX), 1.244 Gbps Upstream (TX) | Wavelengths: | 1490 Nm Downstream (RX), 1310 Nm Upstream (TX) |
| Warranty: | 1 Year | ||
| High Light: | High Performance GPON optical wifi router,2.488Gbps fiber optic modem router,1490nm fiber optic modem router |
||
UBNT UF-Nano Gigabit Ethernet port wired optical modem GPON fiber
Introducing U®Fiber Nano from Ubiquiti Networks, a provider of fiber solutions utilizing Gigabit Passive Optical Network (GPON) technology.
GPON Optical Network Unit

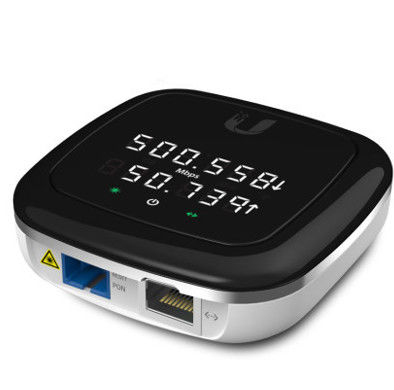

The UFiber Nano G is a robust, high-performance GPON CPE that features an informational LED display and a sleek, sophisticated industrial design.
Features
· WAN: (1) GPON Port
· LAN: (1) Gigabit Ethernet Port
· GPON Speeds: 2.488 Gbps Downstream (RX), 1.244 Gbps Upstream (TX)
· Wavelengths: 1490 nm Downstream (RX), 1310 nm Upstream (TX)

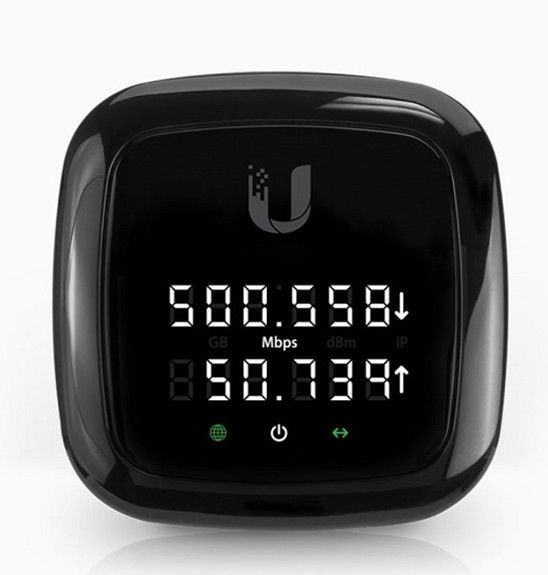

· Display: Digital LED for Status Reporting
· Max. Power Consumption: 7W
· Power Method: 24V Passive PoE
· Mounting: Wall-Mountable (Indoor)
| UF-Nano | |
|
Dimensions |
77 x 77 x 28 mm (3.03 x 3.03 x 1.1") |
|---|---|
|
Weight |
110 g (3.88 oz) |
|
Networking Interfaces |
(1) SC/APC, GPON WAN (1) RJ45, Ethernet LAN |
|
Networking Interface Speeds |
(1) GPON WAN, ITU G.984, (1) GbE LAN, 10/100/1000 Mbps |
|
Management Interface |
In-Band Ethernet/PON |
|
Normal Optical Power Range |
TX (Class B+): 1.5 to 5 dBm RX: -8 to -28 dBm |
|
Power Method |
24V Passive PoE (Pins 4, 5+; 7, 8-) Dying Gasp Support |
|
Power Supply |
PoE Adapter: 24V, 0.3A |
|
Max. Power Consumption |
7W |
|
Supported Voltage Range |
20 to 28V |
|
Processor Specs |
MIPS-32, 240 MHz |
|
Memory Information |
128 MB DDR3 |
|
Buttons |
(1) Display Information (1) Reset |
|
Operating Temperature |
-10 to 45° C (14 to 113° F) |
|
Operating Humidity |
5 to 95% Noncondensing |
|
Certifications |
CE, FCC, IC |
