Product Details:
|
| Model Number: | PBE-5AC-300/400 | Dimensions: | 325 X 325 X 256 Mm |
|---|---|---|---|
| Weight: | 1.203 Kg (2.65 Lb) | Networking Interface: | 10/100/1000 Ethernet Port |
| Max. Power Consumption: | 5.5W | Power Method: | Passive PoE (Pairs 4, 5+; 7, 8-) |
| Gain: | 22 DBi | Warranty: | 1 Year |
| High Light: | PBE-5AC-300,5.8G Cpe Wireless Bridge,25 DBi Cpe Wireless Bridge |
||

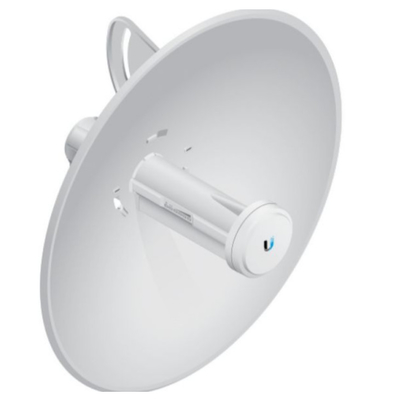

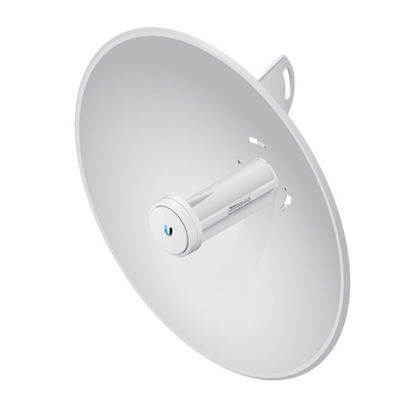

UBNT PBE-5AC-300/400 10KM 25 dBi 5.8G high-power airMAX outdoor cpe wireless bridge
Features of PBE-5AC-300/400
|
1. Ethernet |
|---|
| This Gigabit Ethernet port is used to connect to the power supply and should be connected to the LAN and DHCP server. |
|
2. Reset button |
| If you want to factory reset the device, press the Resetbutton for more than 10 seconds while the device is turned on. Alternatively, the device can be reset via a resetbutton on the bottom of the Gigabit PoEadapter. |
|
3. Unlock button |
| After installing the device, check the release button; this must be fully fitted into the slot for the release button in the rear cover. This ensures that the antenna connector is engaged. If you want to remove the antenna connector, you must first press the unlock button. |
|
4. Signal LEDs |
|
In airOS®, you can change the threshold for the LEDs to display the wireless signal strength on the "Wireless" tab under "Signal LED Thresholds". The individual LEDs light up when the wireless signal strength reaches or exceeds the threshold value of the LED. The default values for these LEDs are shown below:
|
|
5. Ethernet LED |
| The Ethernet LED lights up solid blue when an active Ethernet connection is established and flashes when active. |
|
6. Power LED |
| The power LED lights up blue when the device is connected to a power source. |
Specifications of PBE-5AC-300
| PBE-5AC-300 | |
|
Dimensions |
325 x 325 x 256 mm (12.8 x 12.8 x 10.1") |
|---|---|
|
Weight (Mount Included) |
1.203 kg (2.65 lb) |
|
Gain |
22 dBi |
|
Networking Interface |
(1) 10/100/1000 Ethernet Port |
|
Enclosure |
Outdoor UV Stabilized Plastic |
|
Max. Power Consumption |
5.5W |
|
Power Supply |
24V, 0.5A Gigabit PoE Adapter (Included) |
|
Power Method |
Passive PoE (Pairs 4, 5+; 7, 8-) |
|
Wind Survivability |
200 km/h (125 mph) |
|
Wind Loading |
200.2 N @ 200 km/h (45 lbf @ 125 mph) |
|
Mounting |
Pole Mounting Kit Included |
|
Operating Temperature |
-40 to 70° C (-40 to 158° F) |
|
Operating Humidity |
5 to 95% Noncondensing |
|
Shock and Vibrations |
ETSI300-019-1.4 |
|
Certifications |
CE, FCC, CCC |
| Operating Frequency (MHz) | ||
|
Worldwide |
5150 - 5875 | |
|---|---|---|
|
US/CA |
U-NII-1 |
5150 - 5250 |
|
U-NII-2A |
5250 - 5350 | |
|
U-NII-2C |
5470 - 5725 | |
|
U-NII-3 |
5725 - 5850 | |
Specifications of PBE-5AC-400
| PBE-5AC-400 | |
|
Dimensions |
420 x 420 x 275 mm (16.54 x 16.54 x 10.83") |
|---|---|
|
Weight (incl. bracket) |
1.753 kg (4.789 lb) |
|
Reinforcement |
25 dBi |
|
Network |
(1) 10/100/1000 Ethernet port |
|
Case |
UV-stabilized plastic for outdoor use |
|
Maximum power consumption |
8W |
|
Power supply |
24V, 0.5A PoE adapter (included) |
|
Performance method |
Passive PoE (pairs 4, 5+; 7, 8-) |
|
Wind resistance |
200 km/h |
|
Wind loads |
342.5 N at 200 km/h |
|
Certifications |
CE, FCC, IC |
|
Assembly |
Set for mast mounting included |
|
Operating temperature |
-40 to 70°C (-40 to 158°F) |
|
Operating humidity |
5 to 95%, non-condensing |
|
Shocks and vibrations |
ETSI300-019-1.4 |
| Operating frequency (MHz) | ||
|
Worldwide |
5150 - 5875 | |
|---|---|---|
|
USA/CANADA |
U-NII-1 |
5150 - 5250 |
|
U-NII-2A |
5250 - 5350 | |
|
U-NII-2C |
5470 - 5725 | |
|
U-NII-3 |
5725 - 5850 | |
