Product Details:
|
| Product Name: | NBE-M2-13 | Dimensions: | 189 X 189 X 125 Mm |
|---|---|---|---|
| Weight: | 530g | Gain: | 13 DBi |
| Max. Power Consumption: | 6W | Power Supply: | 24V, 0.5A PoE Adapter (Included) |
| Networking Interface: | 10/100 Ethernet Port | Warranty: | 1 Year |
| High Light: | 150Mbit/S Wireless Bridge,NanoBeam NBE-M2-13,UBNT NanoBeam NBE-M2-13 |
||

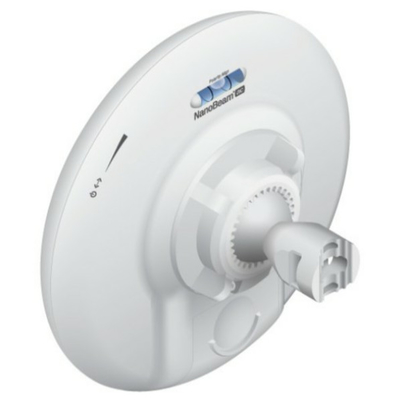

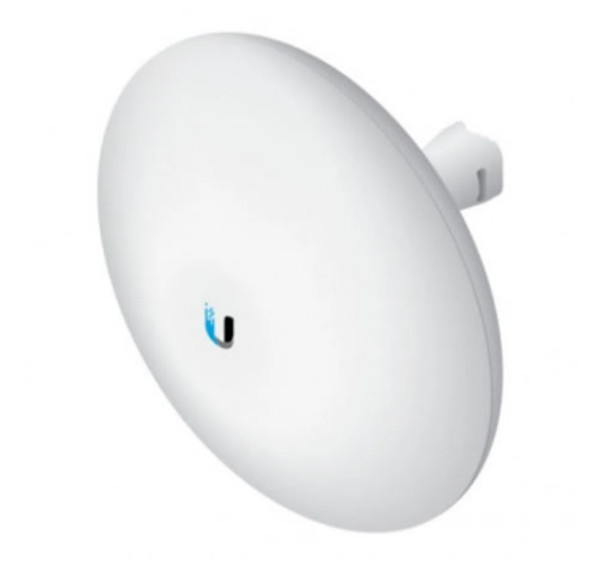

UBNT NanoBeam NBE-M2-13 IEEE 802.11n 150 Mbit/s wireless bridge
Plug and Play Installation
The NanoBeam® mounts to a variety of surfaces including poles or walls, and offers the freedom of three-axis alignment. No screws are required for pole-mounting, and only a single wall screw (not included) is required for wall-mounting.
Incredible Antenna "Beam" Performance
The form factor of the NanoBeam® features the highest gain for its size. The NanoBeam's excellent beam directivity provides the best performance in high-noise environments.
Advanced Software Technology
Ubiquiti's airMAX® technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.
Wall Mount Kit
Use the optional NBE-WMK Wall Mount Kit for enhanced stability when mounting the NanoBeam on a wall.
Specifications
| NBE-M2-13 | |
|
Dimensions (Mount Included) |
189 x 189 x 125 mm (7.44 x 7.44 x 4.92") |
|---|---|
|
Weight (Mount Included) |
530 g (1.17 lb) |
|
Operating Frequency |
2402 - 2482 MHz |
|
Gain |
13 dBi |
|
Networking Interface |
(1) 10/100 Ethernet Port |
|
Enclosure |
Outdoor UV Stabilized Plastic |
|
Max. Power Consumption |
6W |
|
Power Supply |
24V, 0.5A PoE Adapter (Included) |
|
Power Method |
Passive PoE (Pairs 4, 5+; 7, 8 Return) |
|
Wind Loading |
45.4 N @ 200 km/h (10.2 lbf @ 125 mph) |
|
Wind Survivability |
200 km/h (125 mph) |
|
Mounting |
Pole-Mount (Kit Included) Wall-Mount (Not Included) |
|
Salt Fog Test |
IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5 |
|
Vibration Test |
IEC 68-2-6 |
|
Temperature Shock Test |
IEC 68-2-14 |
|
UV Test |
IEC 68-2-5 at 40° C (104° F) Equivalent: ETS 300 019-1-4 |
|
Wind-Driven Rain Test |
ETS 300 019-1-4 Equivalent: MIL-STD-810 G Method 506.5 |
|
Operating Temperature |
-40 to 80° C (-40 to 176° F) |
|
Operating Humidity |
5 to 95% Noncondensing |
|
Certifications |
CE, FCC, CCC |
